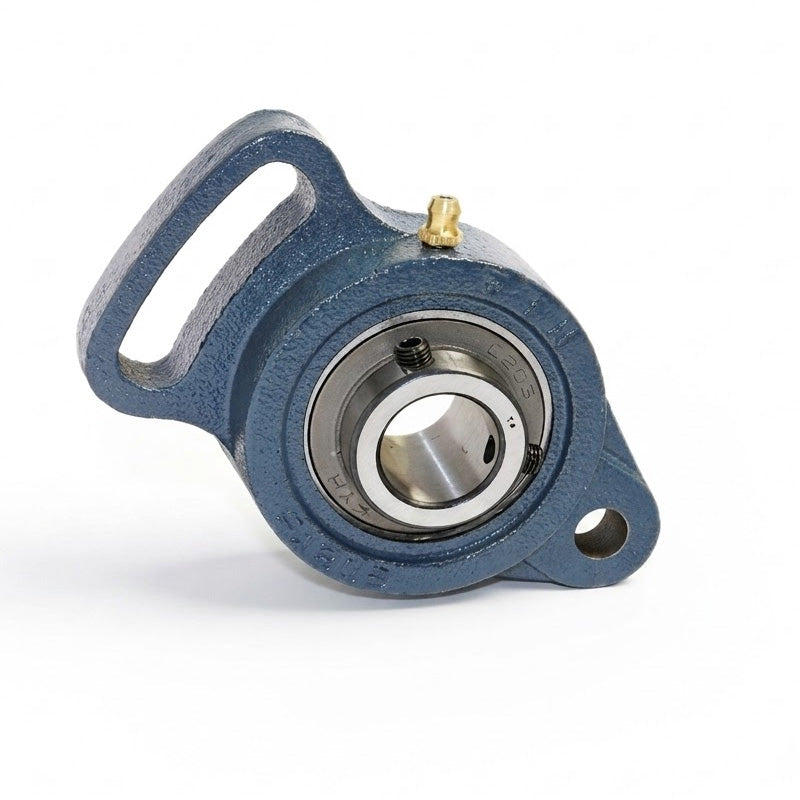

UCFA206-18 Imperial Cast Iron Adjustable Flange Unit with 1-1/8 inch Insert
UCFA206-18 Imperial Cast Iron Adjustable Flange Unit with 1-1/8 inch Insert
Regular price
£16.19
ex VAT£19.43inc. VAT
Regular price
Sale price
£16.19
ex VAT£19.43
inc. VAT
In stock
Price Break
3+
£14.41
4+
£13.60
9+
£13.44
19+
£13.27
49+
£13.11
99+
£12.95
499+
£12.14
999+
£11.98
1999+
£11.82
2999+
£11.65
4999+
£11.33
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 115.09mm = 4.531 (4-17/32) inch
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| a | 5-35/64 inch |
| e | 4-17/32 inch |
| i | 45/64 inch |
| g | 35/64 inch |
| l | 1-7/32 inch |
| s | 33/64 inch |
| b | 3-17/64 inch |
| z | 1-19/32 inch |
| f | 2-9/32 inch |
| c | 2-27/32 inch |
| B | 1.5 inch |
| n | 0.626 inch |
| Bolt size | 3/8 inch |
| Bearing no | UC206-18 |
| Housing no | FA206 |
| Weight | 0.97 kg |
