SKU: UCFA201-8

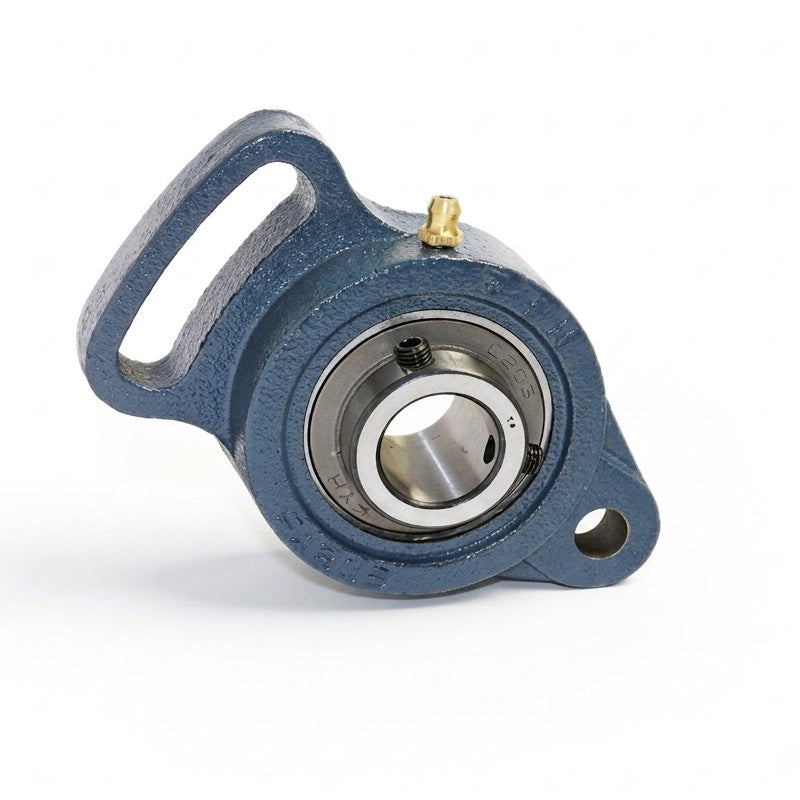

UCFA201-8 Imperial Cast Iron Adjustable Flange Unit with 1/2 inch Insert
UCFA201-8 Imperial Cast Iron Adjustable Flange Unit with 1/2 inch Insert
Regular price
£14.89
ex VAT£17.87inc. VAT
Regular price
Sale price
£14.89
ex VAT£17.87
inc. VAT
In stock
Price Break
3+
£13.25
4+
£12.50
9+
£12.35
19+
£12.21
49+
£12.06
99+
£11.91
499+
£11.16
999+
£11.02
1999+
£10.87
2999+
£10.72
4999+
£10.42
Description
Description
UCFA200 Series Normal Duty Adjustable Flange Units: These bearing units are supplied with a fully sealed bearing insert fitted in the adjustable flange housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- UCFA
- Bolt Hole Centres:
- 78.18mm = 3.078 (3-5/64) inch
Technical
Technical
| d | 1/2 inch |
|---|---|
| a | 3-55/64 inch |
| e | 3-5/64 inch |
| i | 19/32 inch |
| g | 15/32 inch |
| l | 1 inch |
| s | 25/64 inch |
| b | 2-3/8 inch |
| z | 1-5/16 inch |
| f | 1-37/64 inch |
| c | 1-31/32 inch |
| B | 1.2205 inch |
| n | 0.5 inch |
| Bolt size | 5/16 inch |
| Bearing no | UC201-8 |
| Housing no | FA201 |
| Weight | 0.45 kg |
