SKU: UCF328D1-NTN

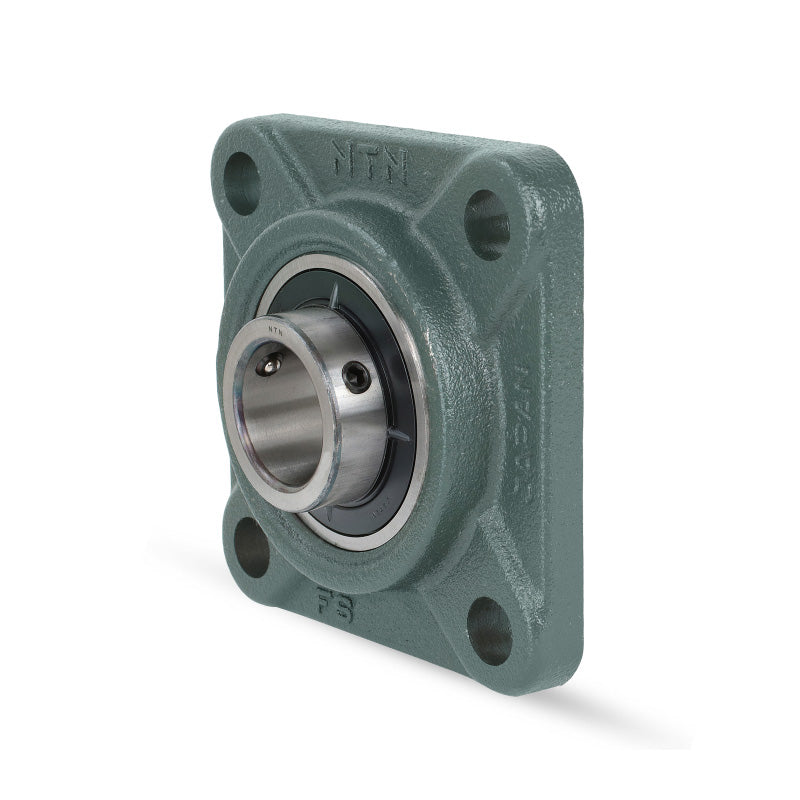

NTN UCF328D1 Metric Four Bolt Square Cast Iron Flange Housing with 140mm Bore Insert - Allow 2-3 Days
NTN UCF328D1 Metric Four Bolt Square Cast Iron Flange Housing with 140mm Bore Insert - Allow 2-3 Days
Regular price
£1,510.16
ex VAT£1,812.19inc. VAT
Regular price
Sale price
£1,510.16
ex VAT£1,812.19
inc. VAT
In stock
Price Break
3+
£1,434.65
4+
£1,359.14
9+
£1,283.64
19+
£1,208.13
49+
£1,177.92
99+
£1,147.72
499+
£996.71
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 140mm
- Style:
- UCF
- Bolt Hole Centres:
- 350mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 140mm |
| L | 450mm |
| J | 350mm |
| A<sub>2</sub> | 75mm |
| A<sub>1</sub> | 55mm |
| A | 125mm |
| N | 41mm |
| A<sub>0</sub> | 161mm |
| B | 145mm |
| S | 59mm |
| Fixing bolt | M36 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 280 kN |
| Static load C<sub>0r</sub> | 246 kN |
| Fatigue load limit C<sub>u</sub> | 13 kN |
| --- | Unit information |
| Mass | 90 kg |
