SKU: UCF326D1-NTN

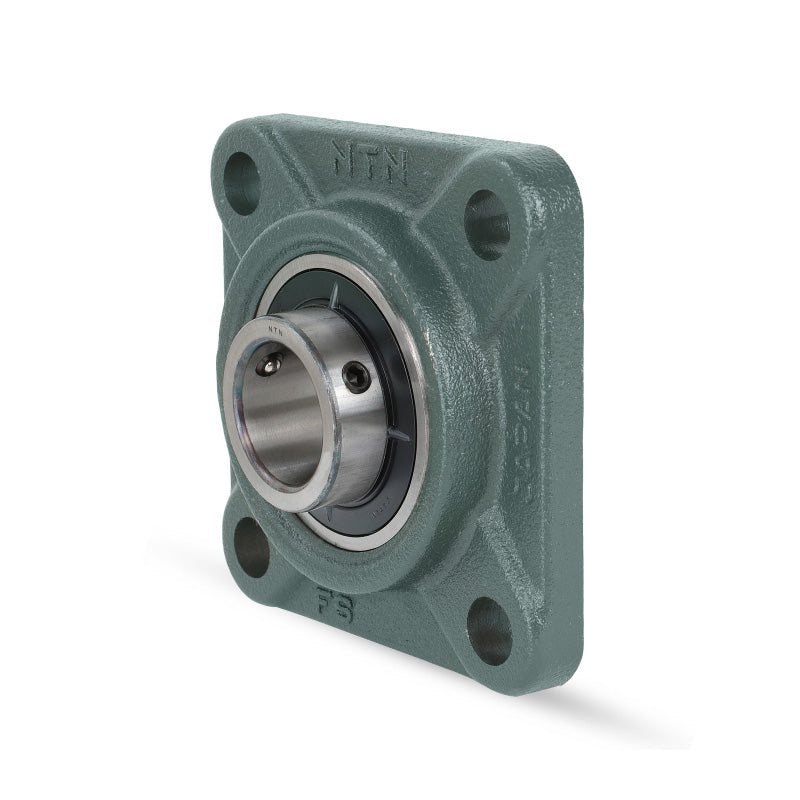

NTN UCF326D1 Metric Four Bolt Square Cast Iron Flange Housing with 130mm Bore Insert - Allow 2-3 Days
NTN UCF326D1 Metric Four Bolt Square Cast Iron Flange Housing with 130mm Bore Insert - Allow 2-3 Days
Regular price
£960.61
ex VAT£1,152.73inc. VAT
Regular price
Sale price
£960.61
ex VAT£1,152.73
inc. VAT
In stock
Price Break
3+
£854.94
4+
£806.91
9+
£797.31
19+
£787.70
49+
£778.09
99+
£768.49
499+
£720.46
999+
£710.85
1999+
£701.25
2999+
£691.64
4999+
£672.43
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 130mm
- Style:
- UCF
- Bolt Hole Centres:
- 320mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 130mm |
| L | 410mm |
| J | 320mm |
| A<sub>2</sub> | 65mm |
| A<sub>1</sub> | 45mm |
| A | 115mm |
| N | 41mm |
| A<sub>0</sub> | 146mm |
| B | 135mm |
| S | 54mm |
| Fixing bolt | M36 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 254 kN |
| Static load C<sub>0r</sub> | 214 kN |
| Fatigue load limit C<sub>u</sub> | 11.7 kN |
| --- | Unit information |
| Mass | 63 kg |
