SKU: UCF322D1-NTN

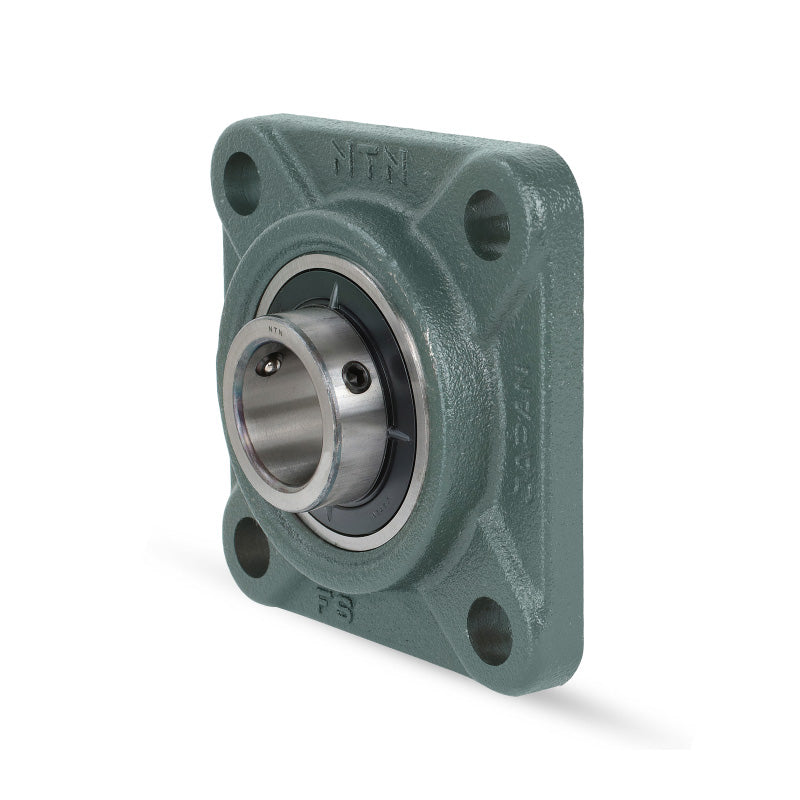

NTN UCF322D1 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
NTN UCF322D1 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
Regular price
£528.18
ex VAT£633.82inc. VAT
Regular price
Sale price
£528.18
ex VAT£633.82
inc. VAT
In stock
Price Break
3+
£470.08
4+
£443.67
9+
£438.39
19+
£433.11
49+
£427.83
99+
£422.54
499+
£396.14
999+
£390.85
1999+
£385.57
2999+
£380.29
4999+
£369.73
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 110mm
- Style:
- UCF
- Bolt Hole Centres:
- 266mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 110mm |
| L | 340mm |
| J | 266mm |
| A<sub>2</sub> | 60mm |
| A<sub>1</sub> | 35mm |
| A | 96mm |
| N | 41mm |
| A<sub>0</sub> | 131mm |
| B | 117mm |
| S | 46mm |
| Fixing bolt | M36 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 227 kN |
| Static load C<sub>0r</sub> | 179 kN |
| Fatigue load limit C<sub>u</sub> | 10.5 kN |
| --- | Unit information |
| Mass | 34 kg |
