SKU: UCF322-SNR
SNR UCF322 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
SNR UCF322 Metric Four Bolt Square Cast Iron Flange Housing with 110mm Bore Insert - Allow 2-3 Days
Regular price
£512.79
ex VAT£615.35inc. VAT
Regular price
Sale price
£512.79
ex VAT£615.35
inc. VAT
In stock
Price Break
3+
£456.39
4+
£430.75
9+
£425.62
19+
£420.49
49+
£415.36
99+
£410.24
499+
£384.60
999+
£379.47
1999+
£374.34
2999+
£369.21
4999+
£358.96
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 110mm
- Style:
- UCF
- Bolt Hole Centres:
- 266mm
Technical
Technical

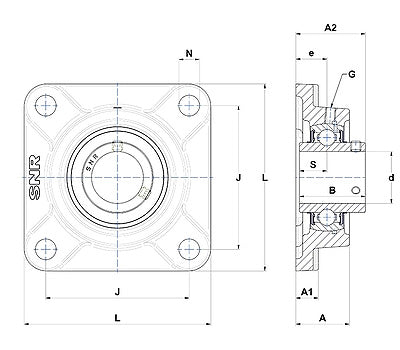

| --- | Dimensions |
|---|---|
| Shaft diameter d | 110mm |
| A | 96mm |
| A1 | 35mm |
| A2 | 131mm |
| B | 117mm |
| e | 60mm |
| J | 266mm |
| L | 340mm |
| N | 41mm |
| S | 46mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 205 kN |
| Static load C0 | 178 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 75 Nm |
| Mass | 34.4 kg |
