SKU: UCF320

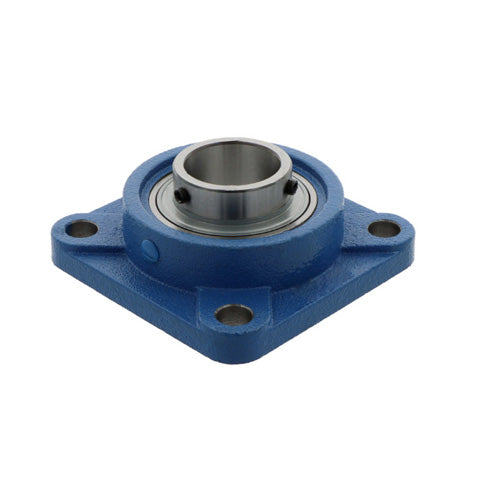

UCF320 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Insert
UCF320 Metric Four Bolt Square Cast Iron Flange Housing with 100mm Bore Insert
Regular price
£458.20
ex VAT£549.84inc. VAT
Regular price
Sale price
£458.20
ex VAT£549.84
inc. VAT
In stock
Price Break
3+
£407.80
4+
£384.89
9+
£380.31
19+
£375.73
49+
£371.15
99+
£366.56
499+
£343.65
999+
£339.07
1999+
£334.49
2999+
£329.91
4999+
£320.74
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 100mm
- Style:
- UCF
- Bolt Hole Centres:
- 242mm
Technical
Technical
| d | 100mm |
|---|---|
| a | 310mm |
| e | 242mm |
| i | 59mm |
| g | 32mm |
| l | 94mm |
| s | 38mm |
| z | 125mm |
| B | 108mm |
| n | 42mm |
| Bolt size | M33 |
| Bearing no. | UC320 |
| Housing no. | F320 |
| Weight | 26.1 kg |
