SKU: UCF314D1-NTN

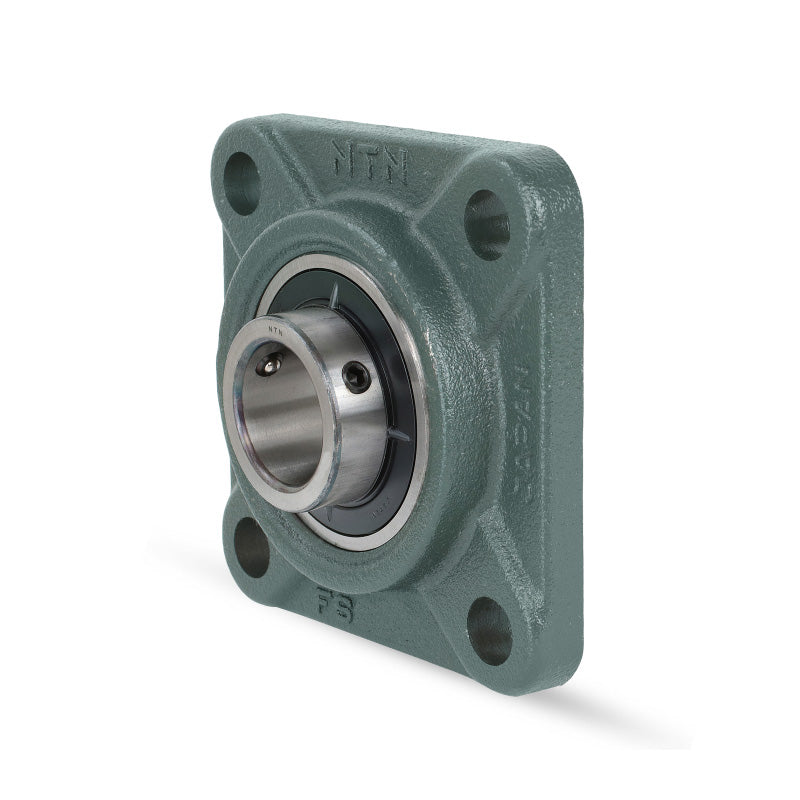

NTN UCF314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
NTN UCF314D1 Metric Four Bolt Square Cast Iron Flange Housing with 70mm Bore Insert - Allow 2-3 Days
Regular price
£221.66
ex VAT£265.99inc. VAT
Regular price
Sale price
£221.66
ex VAT£265.99
inc. VAT
In stock
Price Break
3+
£219.44
4+
£210.58
9+
£206.14
19+
£199.49
49+
£195.06
99+
£183.98
499+
£155.16
999+
£0.00
1999+
£0.00
2999+
£0.00
4999+
£0.00
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 70mm
- Style:
- UCF
- Bolt Hole Centres:
- 178mm
Technical
Technical

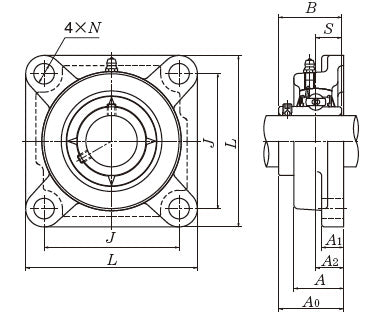

| --- | Dimensions |
|---|---|
| Shaft diameter | 70mm |
| L | 226mm |
| J | 178mm |
| A<sub>2</sub> | 36mm |
| A<sub>1</sub> | 25mm |
| A | 61mm |
| N | 25mm |
| A<sub>0</sub> | 81mm |
| B | 78mm |
| S | 33mm |
| Fixing bolt | M22 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 115 kN |
| Static load C<sub>0r</sub> | 68 kN |
| Fatigue load limit C<sub>u</sub> | 5.1 kN |
| --- | Unit information |
| Mass | 9.4 kg |
