SKU: UCF313D1-NTN

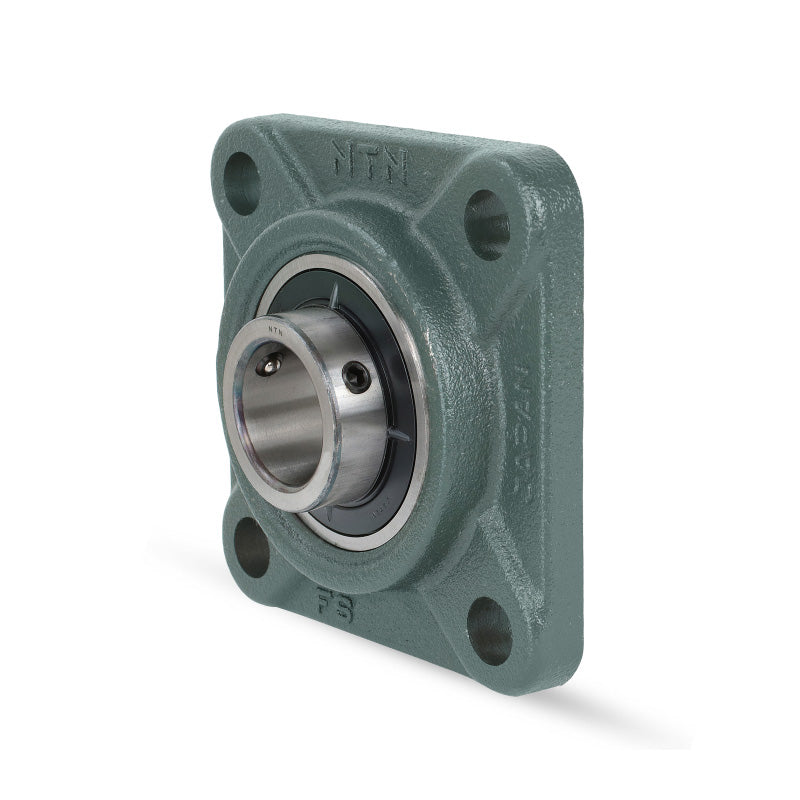

NTN UCF313D1 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
NTN UCF313D1 Metric Four Bolt Square Cast Iron Flange Housing with 65mm Bore Insert - Allow 2-3 Days
Regular price
£140.65
ex VAT£168.78inc. VAT
Regular price
Sale price
£140.65
ex VAT£168.78
inc. VAT
In stock
Price Break
3+
£125.18
4+
£118.15
9+
£116.74
19+
£115.33
49+
£113.93
99+
£112.52
499+
£105.49
999+
£104.08
1999+
£102.67
2999+
£101.27
4999+
£98.46
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 65mm
- Style:
- UCF
- Bolt Hole Centres:
- 166mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 65mm |
| L | 208mm |
| J | 166mm |
| A<sub>2</sub> | 33mm |
| A<sub>1</sub> | 22mm |
| A | 58mm |
| N | 23mm |
| A<sub>0</sub> | 78mm |
| B | 75mm |
| S | 30mm |
| Fixing bolt | M20 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 103 kN |
| Static load C<sub>0r</sub> | 60 kN |
| Fatigue load limit C<sub>u</sub> | 4.6 kN |
| --- | Unit information |
| Mass | 8 kg |
