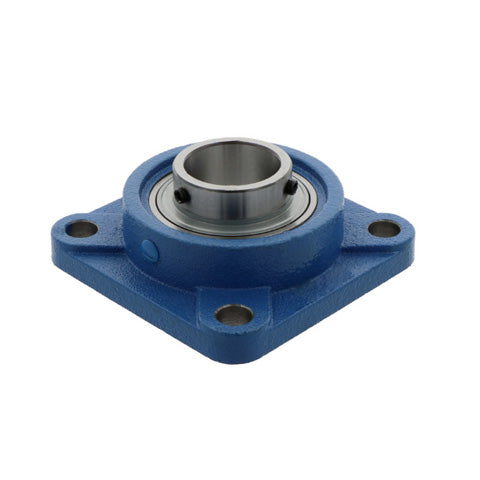

UCF312 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert
UCF312 Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert
Regular price
£82.07
ex VAT£98.48inc. VAT
Regular price
Sale price
£82.07
ex VAT£98.48
inc. VAT
In stock
Price Break
3+
£73.04
4+
£68.94
9+
£68.12
19+
£67.30
49+
£66.48
99+
£65.66
499+
£61.55
999+
£60.73
1999+
£59.91
2999+
£59.09
4999+
£57.45
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Style:
- UCF
- Bolt Hole Centres:
- 150mm
Technical
Technical
| d | 60mm |
|---|---|
| a | 195mm |
| e | 150mm |
| i | 33mm |
| g | 22mm |
| l | 56mm |
| s | 23mm |
| z | 78mm |
| B | 71mm |
| n | 26mm |
| Bolt size | M20 |
| Bearing no. | UC312 |
| Housing no. | F312 |
| Weight | 6.5 kg |
