SKU: UCF311

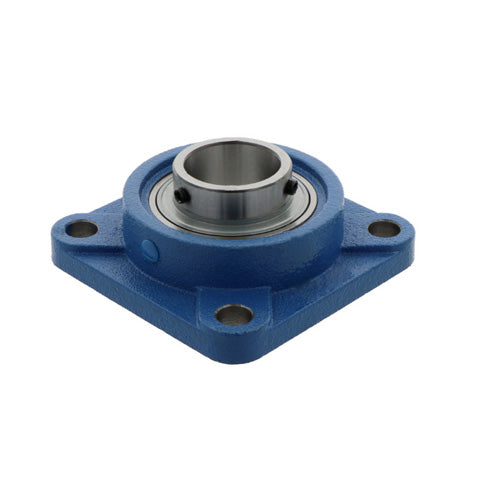

UCF311 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert
UCF311 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert
Regular price
£71.44
ex VAT£85.73inc. VAT
Regular price
Sale price
£71.44
ex VAT£85.73
inc. VAT
In stock
Price Break
10+
£63.58
19+
£60.01
29+
£59.30
39+
£58.58
49+
£57.87
74+
£57.15
99+
£53.58
199+
£52.87
249+
£52.15
499+
£51.44
999+
£50.01
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Style:
- UCF
- Bolt Hole Centres:
- 140mm
Technical
Technical
| d | 55mm |
|---|---|
| a | 185mm |
| e | 140mm |
| i | 30mm |
| g | 20mm |
| l | 52mm |
| s | 23mm |
| z | 71mm |
| B | 66mm |
| n | 25mm |
| Bolt size | M20 |
| Bearing no. | UC311 |
| Housing no. | F311 |
| Weight | 5.5 kg |
