SKU: UCF310

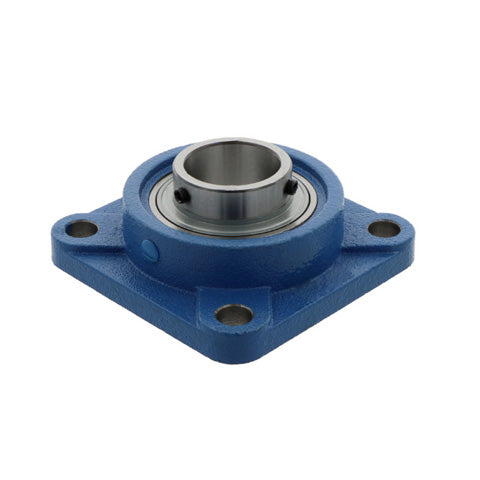

UCF310 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert
UCF310 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert
Regular price
£54.62
ex VAT£65.54inc. VAT
Regular price
Sale price
£54.62
ex VAT£65.54
inc. VAT
In stock
Price Break
3+
£48.61
4+
£45.88
9+
£45.34
19+
£44.79
49+
£44.24
99+
£43.70
499+
£40.97
999+
£40.42
1999+
£39.87
2999+
£39.33
4999+
£38.23
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50mm
- Style:
- UCF
- Bolt Hole Centres:
- 132mm
Technical
Technical
| d | 50mm |
|---|---|
| a | 175mm |
| e | 132mm |
| i | 28mm |
| g | 19mm |
| l | 48mm |
| s | 23mm |
| z | 67mm |
| B | 61mm |
| n | 22mm |
| Bolt size | M20 |
| Bearing no. | UC310 |
| Housing no. | F310 |
| Weight | 4.5 kg |
