SKU: UCF309D1-NTN

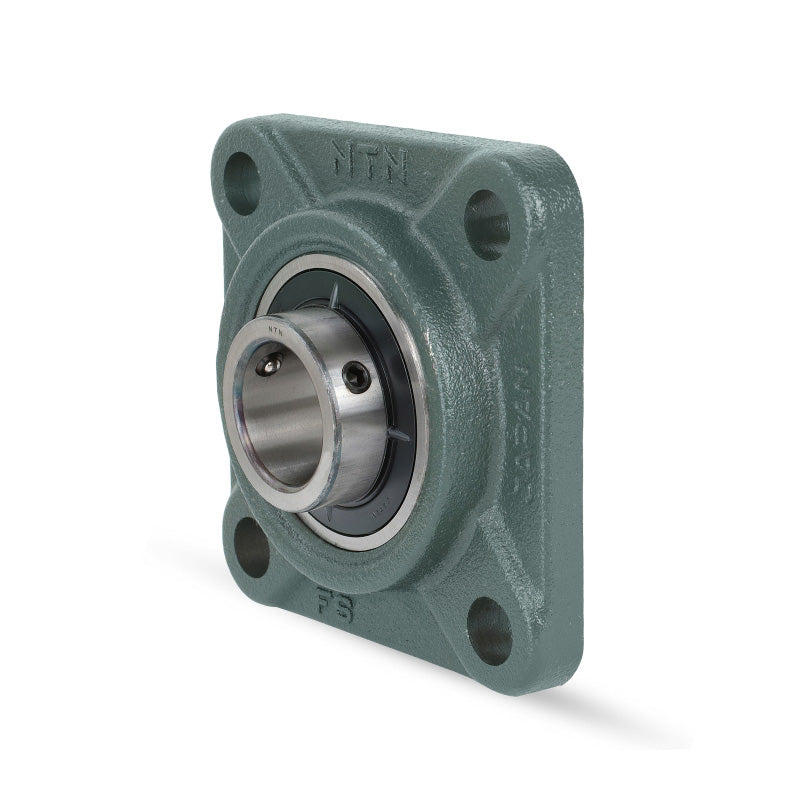

NTN UCF309D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
NTN UCF309D1 Metric Four Bolt Square Cast Iron Flange Housing with 45mm Bore Insert - Allow 2-3 Days
Regular price
£70.11
ex VAT£84.13inc. VAT
Regular price
Sale price
£70.11
ex VAT£84.13
inc. VAT
In stock
Price Break
3+
£62.40
4+
£58.89
9+
£58.19
19+
£57.49
49+
£56.79
99+
£56.09
499+
£52.58
999+
£51.88
1999+
£51.18
2999+
£50.48
4999+
£49.08
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 45mm
- Style:
- UCF
- Bolt Hole Centres:
- 125mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 45mm |
| L | 160mm |
| J | 125mm |
| A<sub>2</sub> | 25mm |
| A<sub>1</sub> | 18mm |
| A | 44mm |
| N | 19mm |
| A<sub>0</sub> | 60mm |
| B | 57mm |
| S | 22mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 58.5 kN |
| Static load C<sub>0r</sub> | 32 kN |
| Fatigue load limit C<sub>u</sub> | 2.5 kN |
| --- | Unit information |
| Mass | 3.4 kg |
