SKU: UCF308

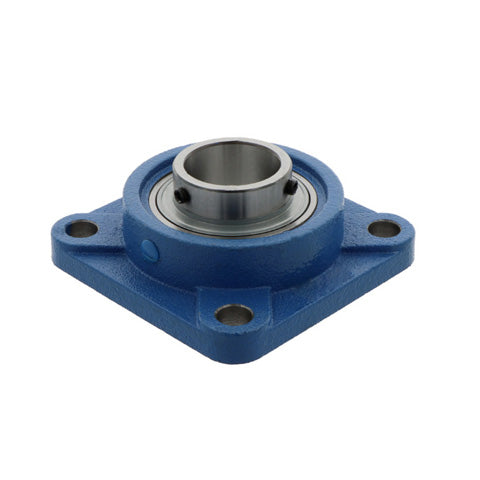

UCF308 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert
UCF308 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert
Regular price
£35.87
ex VAT£43.04inc. VAT
Regular price
Sale price
£35.87
ex VAT£43.04
inc. VAT
In stock
Price Break
3+
£31.93
4+
£30.13
9+
£29.77
19+
£29.42
49+
£29.06
99+
£28.70
499+
£26.91
999+
£26.55
1999+
£26.19
2999+
£25.83
4999+
£25.11
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 40mm
- Style:
- UCF
- Bolt Hole Centres:
- 112mm
Technical
Technical
| d | 40mm |
|---|---|
| a | 150mm |
| e | 112mm |
| i | 23mm |
| g | 17mm |
| l | 40mm |
| s | 19mm |
| z | 56mm |
| B | 52mm |
| n | 19mm |
| Bolt size | M16 |
| Bearing no. | UC308 |
| Housing no. | F308 |
| Weight | 2.6 kg |
