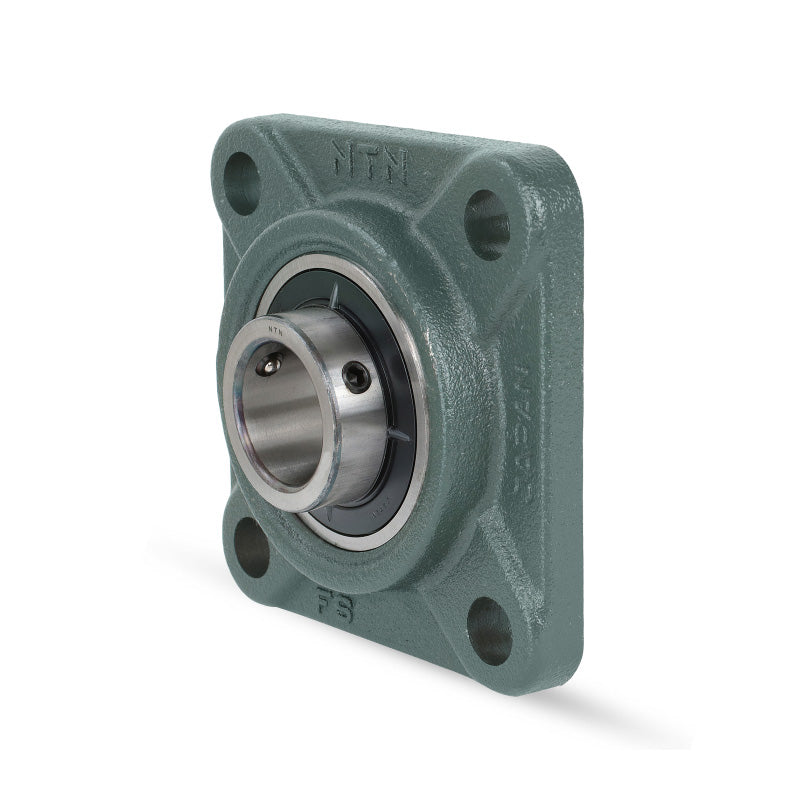

NTN UCF306D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
NTN UCF306D1 Metric Four Bolt Square Cast Iron Flange Housing with 30mm Bore Insert - Allow 2-3 Days
Regular price
£47.66
ex VAT£57.19inc. VAT
Regular price
Sale price
£47.66
ex VAT£57.19
inc. VAT
In stock
Price Break
10+
£42.42
19+
£40.03
29+
£39.56
39+
£39.08
49+
£38.60
74+
£38.13
99+
£35.75
199+
£35.27
249+
£34.79
499+
£34.32
999+
£33.36
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 30mm
- Style:
- UCF
- Bolt Hole Centres:
- 95mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 30mm |
| L | 125mm |
| J | 95mm |
| A<sub>2</sub> | 18mm |
| A<sub>1</sub> | 15mm |
| A | 32mm |
| N | 16mm |
| A<sub>0</sub> | 44mm |
| B | 43mm |
| S | 17mm |
| Fixing bolt | M14 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 29.5 kN |
| Static load C<sub>0r</sub> | 15 kN |
| Fatigue load limit C<sub>u</sub> | 1.14 kN |
| --- | Unit information |
| Mass | 1.6 kg |
