SKU: UCF218T20-SNR

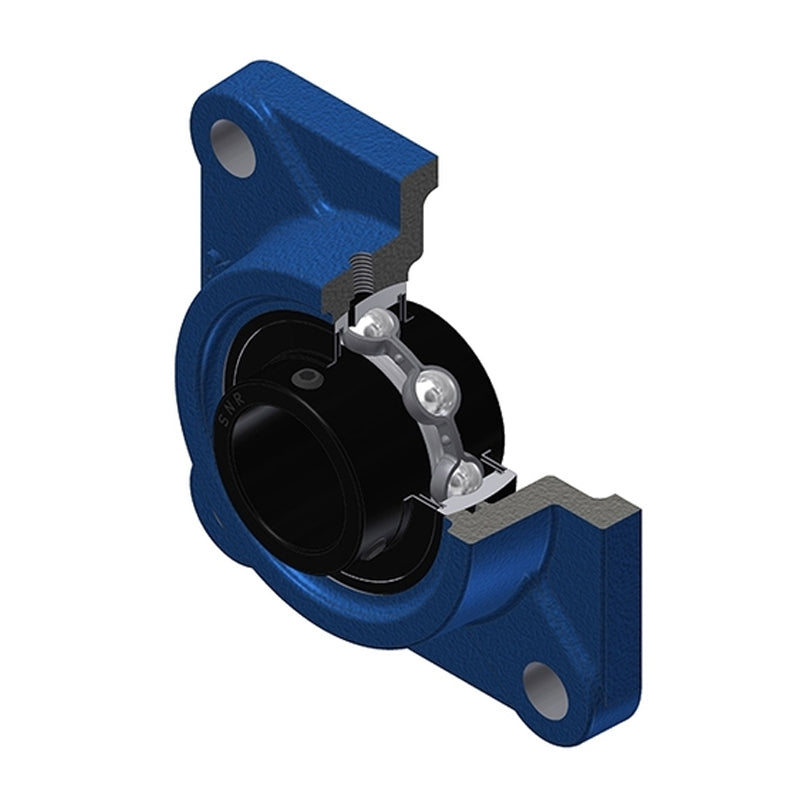

SNR UCF218T20 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert Wide Temperature Version - Allow 2-3 Days
SNR UCF218T20 Metric Four Bolt Square Cast Iron Flange Housing with 90mm Bore Insert Wide Temperature Version - Allow 2-3 Days
Regular price
£498.69
ex VAT£598.43inc. VAT
Regular price
Sale price
£498.69
ex VAT£598.43
inc. VAT
Allow 2-3 Days
In stock
Price Break
5+
£493.70
10+
£473.76
20+
£463.78
50+
£448.82
100+
£438.85
500+
£413.91
1000+
£349.08
Couldn't load pickup availability
Share this product
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 90mm
- Style:
- UCF
- Bolt Hole Centres:
- 187mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 90mm |
| A | 68mm |
| A1 | 25mm |
| A2 | 96.3mm |
| B | 96mm |
| e | 40mm |
| J | 187mm |
| L | 235mm |
| N | 23mm |
| S | 39.7mm |
| G | M10x1 |
| --- | Load rating |
| Dynamic load C | 96 kN |
| Static load C0 | 71.5 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 200°C |
| Recommended tightening torque for set screw | 33 Nm |
| Mass | 11.28 kg |
