SKU: UCF212N-SNR

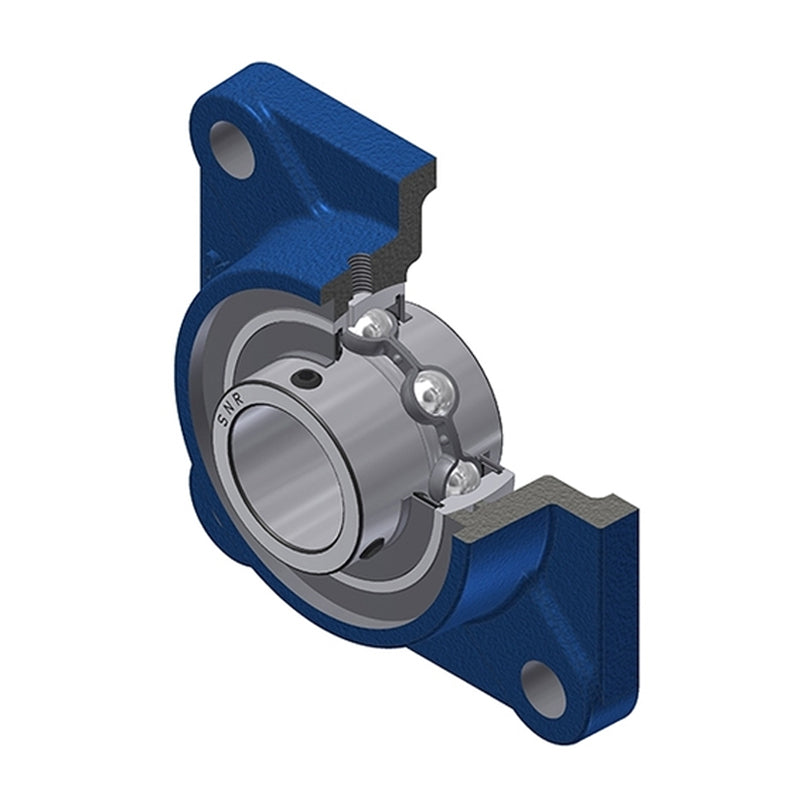

SNR UCF212N Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
SNR UCF212N Metric Four Bolt Square Cast Iron Flange Housing with 60mm Bore Insert - Allow 2-3 Days
Regular price
£69.73
ex VAT£83.68inc. VAT
Regular price
Sale price
£69.73
ex VAT£83.68
inc. VAT
In stock
Price Break
3+
£62.06
4+
£58.57
9+
£57.87
19+
£57.18
49+
£56.48
99+
£55.78
499+
£52.30
999+
£51.60
1999+
£50.90
2999+
£50.20
4999+
£48.81
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 60mm
- Style:
- UCF
- Bolt Hole Centres:
- 143mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 60mm |
| A | 48mm |
| A1 | 18mm |
| A2 | 68.7mm |
| B | 65.1mm |
| e | 29mm |
| J | 143mm |
| L | 175mm |
| N | 19mm |
| S | 25.4mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 52.5 kN |
| Static load C0 | 32.8 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 22 Nm |
| Mass | 4.36 kg |
