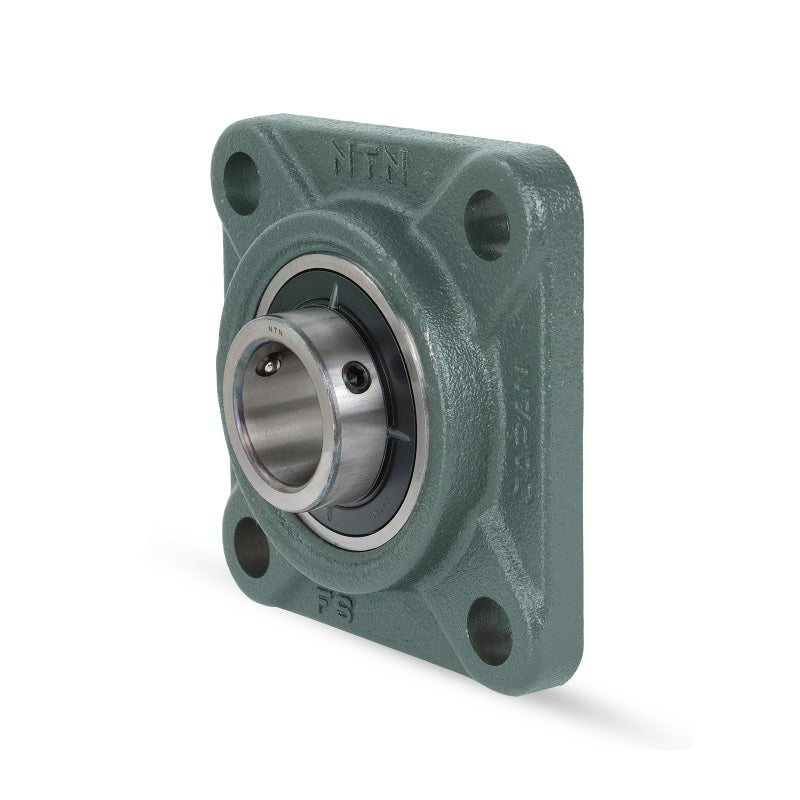

NTN UCF211D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
NTN UCF211D1 Metric Four Bolt Square Cast Iron Flange Housing with 55mm Bore Insert - Allow 2-3 Days
Regular price
£54.61
ex VAT£65.53inc. VAT
Regular price
Sale price
£54.61
ex VAT£65.53
inc. VAT
In stock
Price Break
3+
£48.60
4+
£45.87
9+
£45.33
19+
£44.78
49+
£44.23
99+
£43.69
499+
£40.96
999+
£40.41
1999+
£39.87
2999+
£39.32
4999+
£38.23
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCF
- Bolt Hole Centres:
- 130mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 55mm |
| L | 162mm |
| J | 130mm |
| A<sub>2</sub> | 25mm |
| A<sub>1</sub> | 18mm |
| A | 43mm |
| N | 19mm |
| A<sub>0</sub> | 58.4mm |
| B | 55.6mm |
| S | 22.2mm |
| Fixing bolt | M16 |
| --- | Load rating |
| Dynamic load C<sub>r</sub> | 48 kN |
| Static load C<sub>0r</sub> | 29.2 kN |
| Fatigue load limit C<sub>u</sub> | 2.29 kN |
| --- | Unit information |
| Mass | 3.3 kg |
