SKU: UCF208NL3-SNR

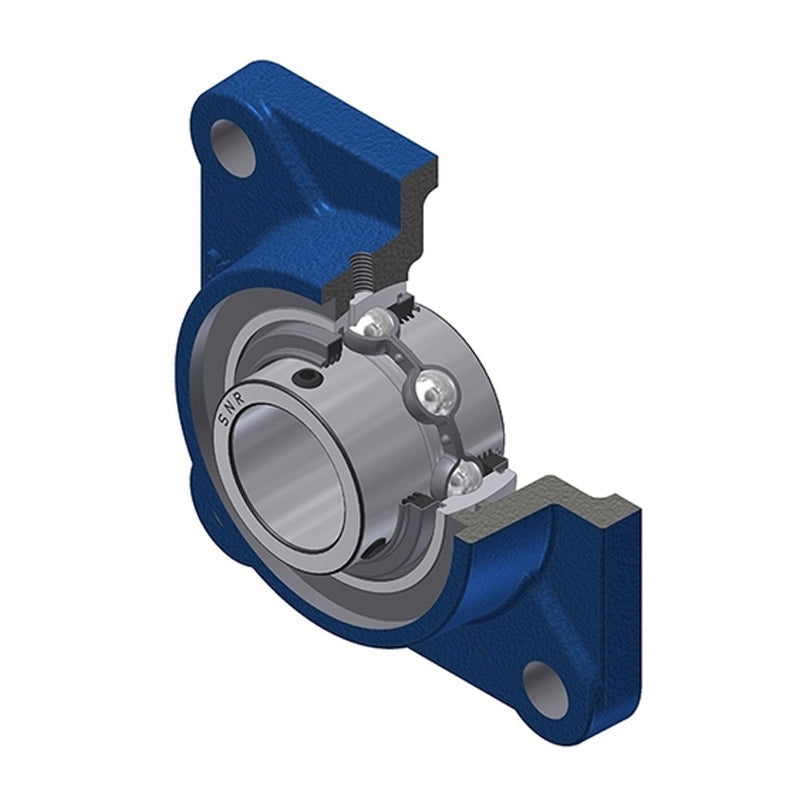

SNR UCF208NL3 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
SNR UCF208NL3 Metric Four Bolt Square Cast Iron Flange Housing with 40mm Bore Insert with Triple Lip Seal - Allow 2-3 Days
Regular price
£65.16
ex VAT£78.19inc. VAT
Regular price
Sale price
£65.16
ex VAT£78.19
inc. VAT
In stock
Price Break
3+
£57.99
4+
£54.73
9+
£54.08
19+
£53.43
49+
£52.78
99+
£52.13
499+
£48.87
999+
£48.22
1999+
£47.57
2999+
£46.91
4999+
£45.61
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 40mm
- Style:
- UCF
- Bolt Hole Centres:
- 102mm
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter d | 40mm |
| A | 36mm |
| A1 | 15mm |
| A2 | 51.2mm |
| B | 49.2mm |
| e | 21mm |
| J | 102mm |
| L | 130mm |
| N | 16mm |
| S | 19mm |
| G | M6x1 |
| --- | Load rating |
| Dynamic load C | 29.6 kN |
| Static load C0 | 18.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Recommended tightening torque for set screw | 11.5 Nm |
| Mass | 1.89 kg |
