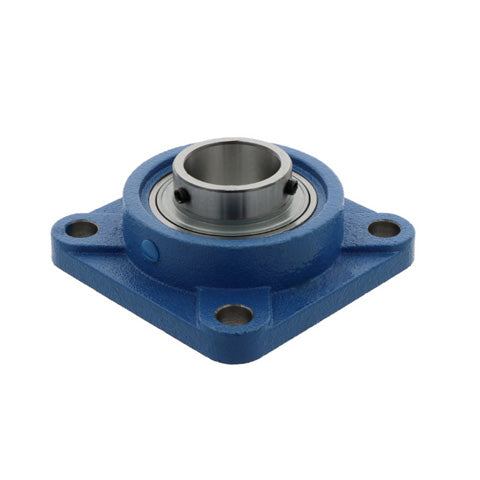

UCF217-52 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/4 inch Bore Insert
UCF217-52 Imperial Four Bolt Square Cast Iron Flange Housing with 3-1/4 inch Bore Insert
Regular price
£281.21
ex VAT£337.45inc. VAT
Regular price
Sale price
£281.21
ex VAT£337.45
inc. VAT
In stock
Price Break
3+
£250.28
4+
£236.22
9+
£233.41
19+
£230.60
49+
£227.78
99+
£224.97
499+
£210.91
999+
£208.10
1999+
£205.29
2999+
£202.47
4999+
£196.85
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Style:
- UCF
- Bolt Hole Centres:
- 175mm
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| a | 220mm |
| e | 175mm |
| i | 36mm |
| g | 26mm |
| L | 63mm |
| S | 23mm |
| Z | 87.6mm |
| Bi | 85.7mm |
| n | 34.1mm |
| Bolt Size | M20 |
| Weight | 9.1 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
