SKU: UCF.206-18

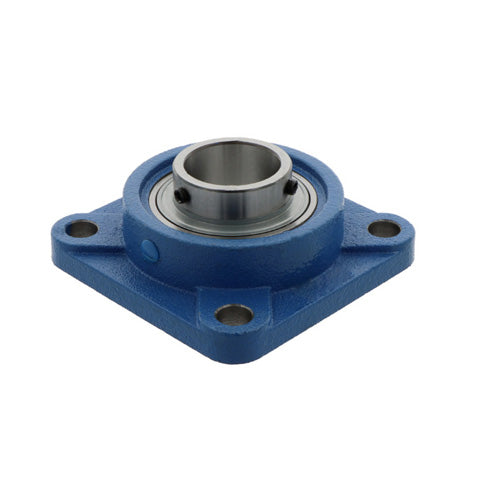

UCF206-18 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/8 inch Bore Insert
UCF206-18 Imperial Four Bolt Square Cast Iron Flange Housing with 1-1/8 inch Bore Insert
Regular price
£8.95
ex VAT£10.74inc. VAT
Regular price
Sale price
£8.95
ex VAT£10.74
inc. VAT
Equivalent to: SF1-1/8
In stock
Price Break
3+
£7.97
4+
£7.52
9+
£7.43
19+
£7.34
49+
£7.25
99+
£7.16
499+
£6.71
999+
£6.62
1999+
£6.53
2999+
£6.44
4999+
£6.27
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SF1-1/8
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 28.58mm = 1.125 (1-1/8) inch
- Style:
- UCF
- Bolt Hole Centres:
- 83mm
Technical
Technical
| d | 1-1/8 inch |
|---|---|
| a | 108mm |
| e | 83mm |
| i | 18mm |
| g | 14mm |
| L | 31mm |
| S | 12mm |
| Z | 40.2mm |
| Bi | 38.1mm |
| n | 15.9mm |
| Bolt Size | M10 |
| Weight | 1.1 kg |
| Dynamic load | 1520 kgf |
| Static load | 1020 kgf |
| Rec max speed | 5300 rpm |
