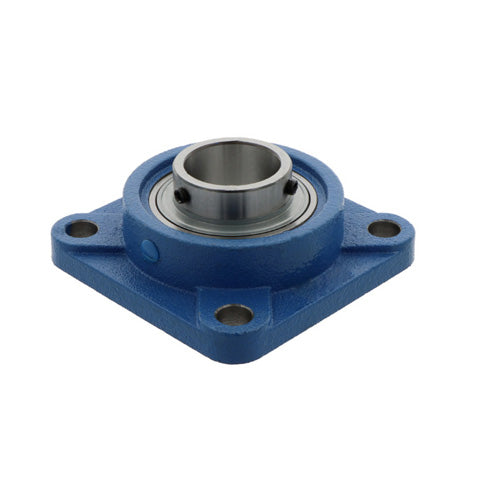

UCF203-11 Imperial Four Bolt Square Cast Iron Flange Housing with 11/16 inch Bore Insert
UCF203-11 Imperial Four Bolt Square Cast Iron Flange Housing with 11/16 inch Bore Insert
Regular price
£11.57
ex VAT£13.88inc. VAT
Regular price
Sale price
£11.57
ex VAT£13.88
inc. VAT
In stock
Price Break
10+
£10.30
19+
£9.72
29+
£9.60
39+
£9.49
49+
£9.37
74+
£9.26
99+
£8.68
199+
£8.56
249+
£8.45
499+
£8.33
999+
£8.10
Couldn't load pickup availability
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17.46mm = 0.687 (11/16) inch
- Style:
- UCF
- Bolt Hole Centres:
- 64mm
Technical
Technical
| d | 11/16 inch |
|---|---|
| a | 86mm |
| e | 64mm |
| i | 15mm |
| g | 12mm |
| L | 25.6mm |
| S | 12mm |
| Z | 33.3mm |
| Bi | 31mm |
| n | 12.7mm |
| Bolt Size | M10 |
| Weight | 0.63 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
