SKU: UCF.203

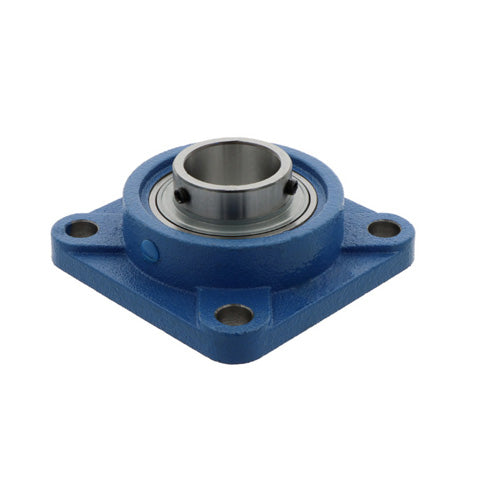

UCF203 Metric Four Bolt Square Cast Iron Flange Housing with 17mm Bore Insert
UCF203 Metric Four Bolt Square Cast Iron Flange Housing with 17mm Bore Insert
Regular price
£7.56
ex VAT£9.07inc. VAT
Regular price
Sale price
£7.56
ex VAT£9.07
inc. VAT
Equivalent to: SF17
In stock
Price Break
3+
£6.73
4+
£6.35
9+
£6.27
19+
£6.20
49+
£6.12
99+
£6.05
499+
£5.67
999+
£5.59
1999+
£5.52
2999+
£5.44
4999+
£5.29
Description
Description
|
UCF or SF Series 4 Bolt Square Cast Iron Housings: Bearing units supplied with a fully sealed bearing insert fitted in the cast iron housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing |
Equivalent: SF17
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 17mm
- Style:
- UCF
- Bolt Hole Centres:
- 64mm
Technical
Technical
| d | 17mm |
|---|---|
| a | 86mm |
| e | 64mm |
| i | 15mm |
| g | 12mm |
| L | 25.6mm |
| S | 12mm |
| Z | 33.3mm |
| Bi | 31mm |
| n | 12.7mm |
| Bolt Size | M10 |
| Weight | 0.63 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 8800 rpm |
