SKU: UCEHE210-SNR

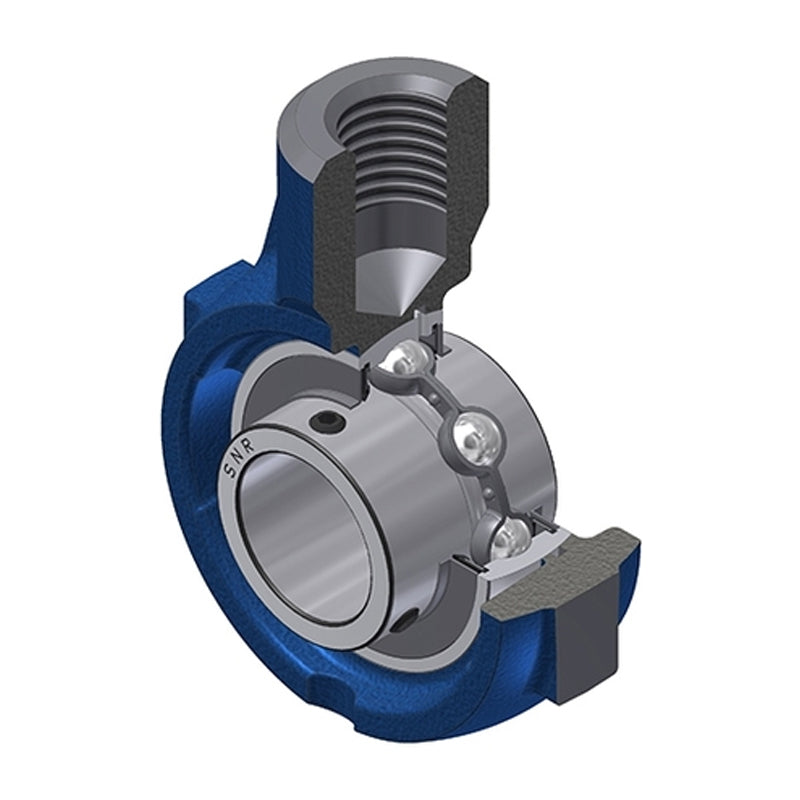

SNR UCEHE210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
SNR UCEHE210 Metric Cast Iron Hanger Bearing Unit with 50mm Bore Insert - Allow 2-3 Days
Regular price
£54.78
ex VAT£65.74inc. VAT
Regular price
Sale price
£54.78
ex VAT£65.74
inc. VAT
In stock
Price Break
3+
£48.76
4+
£46.02
9+
£45.47
19+
£44.92
49+
£44.38
99+
£43.83
499+
£41.09
999+
£40.54
1999+
£39.99
2999+
£39.44
4999+
£38.35
Share this product
Description
Description
UCEHE200 Series Hanger Units: These bearing units are supplied with a fully sealed bearing insert fitted and includes a grease nipple to facilitate lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts can be removed from the housing for future replacement as required.
Benefits: Can be re-lubricated, replaceable bearing insert, grub screw fixing
- Brand / Quality:
- SNR - High Quality
- Inside Diameter:
- 50mm
- Style:
- UCEHE
Technical
Technical
| --- | Dimensions |
|---|---|
| Shaft diameter | 50mm |
| A | 40mm |
| A2 | 40mm |
| B | 51.6mm |
| E | 24mm |
| H | 110mm |
| L | 145mm |
| L1 | 90mm |
| L3 | 46mm |
| S | 19mm |
| G | R1/8″ |
| G1 | M24 |
| --- | Load rating |
| Dynamic load C | 35.1 kN |
| Static load C0 | 23.2 kN |
| --- | Unit information |
| Operating temperature min. | -20°C |
| Operating temperature max. | 100°C |
| Mass | 1.8 kg |
