SKU: UCC211D1-NTN

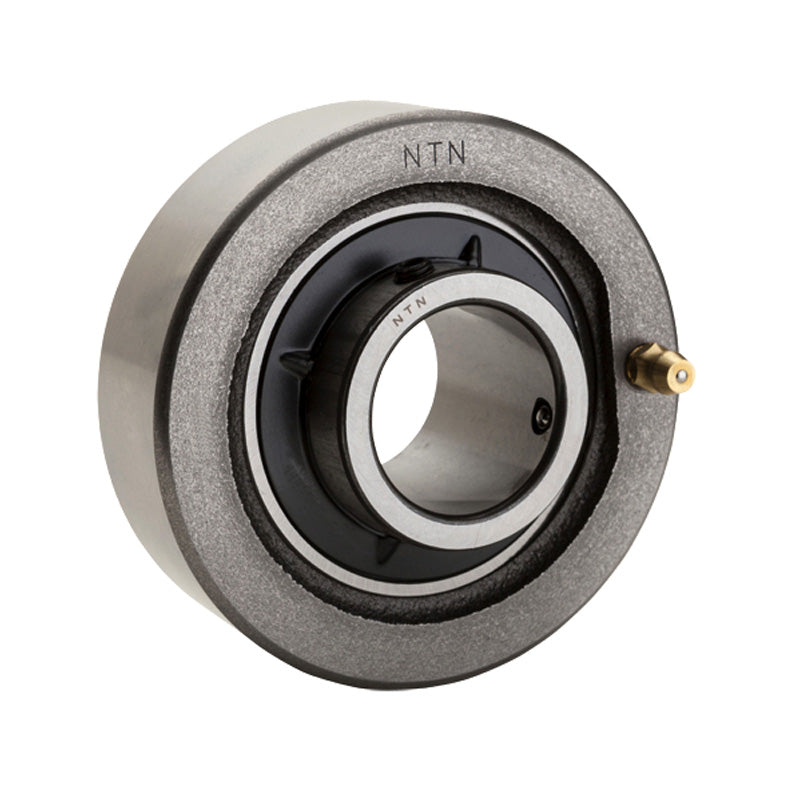

NTN UCC211D1 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 125mm Outside Dia - Allow 2-3 Days
NTN UCC211D1 Metric Cast Iron Cartridge Unit with 55mm Bore Insert 125mm Outside Dia - Allow 2-3 Days
Regular price
£63.71
ex VAT£76.45inc. VAT
Regular price
Sale price
£63.71
ex VAT£76.45
inc. VAT
In stock
Price Break
10+
£56.70
19+
£53.52
29+
£52.88
39+
£52.24
49+
£51.61
74+
£50.97
99+
£47.78
199+
£47.15
249+
£46.51
499+
£45.87
999+
£44.60
Couldn't load pickup availability
Description
Description
UCC Series (Normal Duty) Cartridge Bearing Unit: Cast iron cartridge bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. Cartridge units allow a self aligning bearing inserts to be used where a fixed bearing would normally be used.
The insert can be removed from the housings for future replacement as required
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, full width insert
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 55mm
- Style:
- UCC
Technical
Technical
| Shaft diameter | 55mm |
|---|---|
| H | 125mm |
| A | 35mm |
| r | 2.5mm |
| B | 55.6mm |
| S | 22.2mm |
| Mass | 2.1 kg |
