SKU: UC.217-52

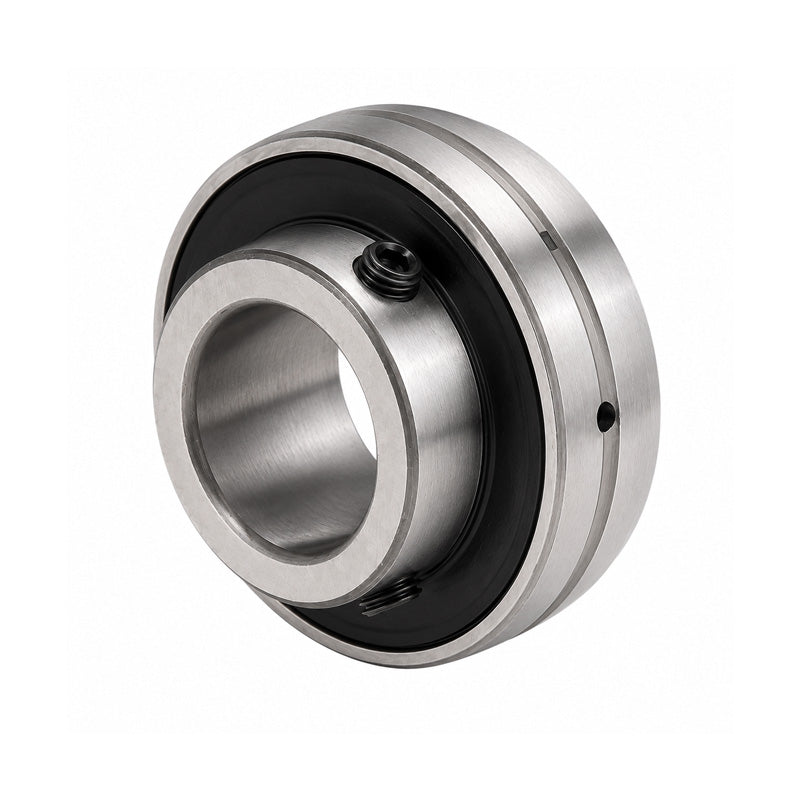

UC217-52 Imperial Bearing Insert with 3-1/4 inch Bore 150mm Outside Dia
UC217-52 Imperial Bearing Insert with 3-1/4 inch Bore 150mm Outside Dia
Regular price
£141.78
ex VAT£170.14inc. VAT
Regular price
Sale price
£141.78
ex VAT£170.14
inc. VAT
In stock
Price Break
3+
£126.18
4+
£119.10
9+
£117.68
19+
£116.26
49+
£114.84
99+
£113.42
499+
£106.34
999+
£104.92
1999+
£103.50
2999+
£102.08
4999+
£99.25
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 82.55mm = 3.25 (3-1/4) inch
- Outside Diameter:
- 150mm
- Style:
- UC
Technical
Technical
| d | 3-1/4 inch |
|---|---|
| D | 150mm |
| Bi | 85mm |
| Be | 35mm |
| n | 34.1mm |
| m | 51.6mm |
| G | 14mm |
| Grub screw | 7/16"-20 UNF |
| Weight | 3.66 kg |
| Dynamic load | 6600 kgf |
| Static load | 5320 kgf |
