SKU: UC.215

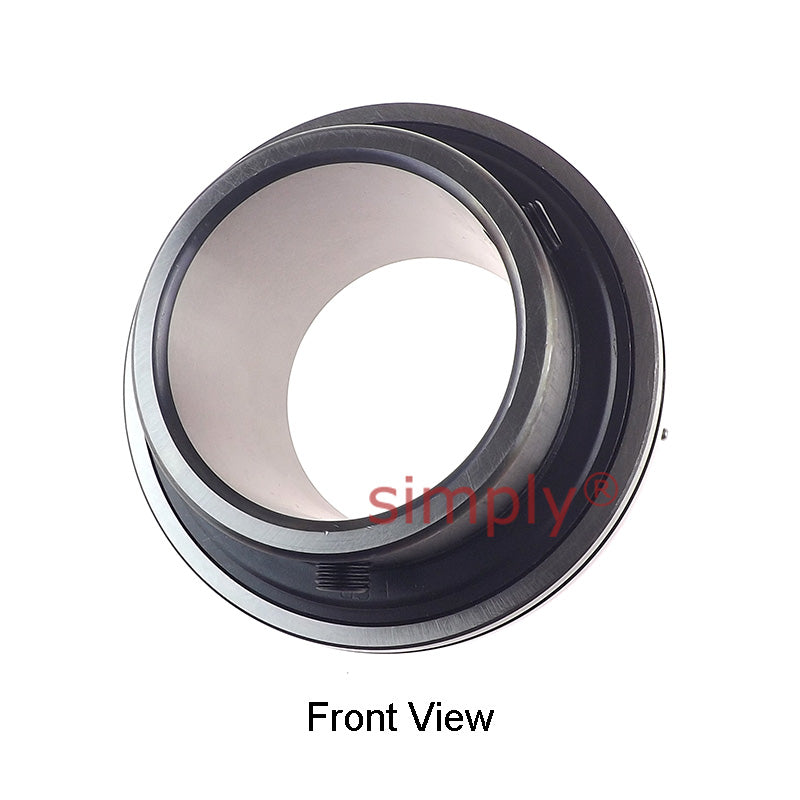

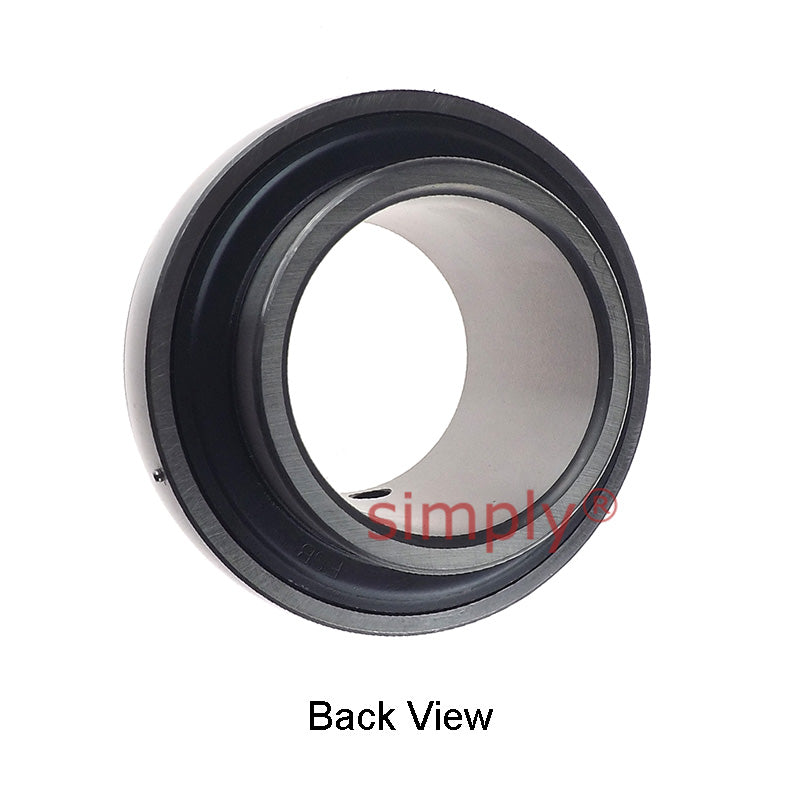

UC215 Metric Bearing Insert with 75mm Bore 130mm Outside Dia
UC215 Metric Bearing Insert with 75mm Bore 130mm Outside Dia
Regular price
£16.79
ex VAT£20.15inc. VAT
Regular price
Sale price
£16.79
ex VAT£20.15
inc. VAT
In stock
Price Break
10+
£14.94
19+
£14.10
29+
£13.94
39+
£13.77
49+
£13.60
74+
£13.43
99+
£12.59
199+
£12.42
249+
£12.26
499+
£12.09
999+
£11.75
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 75mm
- Outside Diameter:
- 130mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 75mm |
|---|---|
| D | 130mm |
| Bi | 77.8mm |
| Be | 30mm |
| n | 33.3mm |
| m | 44.5mm |
| G | 12mm |
| Grub screw | 7/16"-20 UNF |
| Weight | 2.12 kg |
| Dynamic load | 5190 kgf |
| Static load | 4190 kgf |
