SKU: UC.214

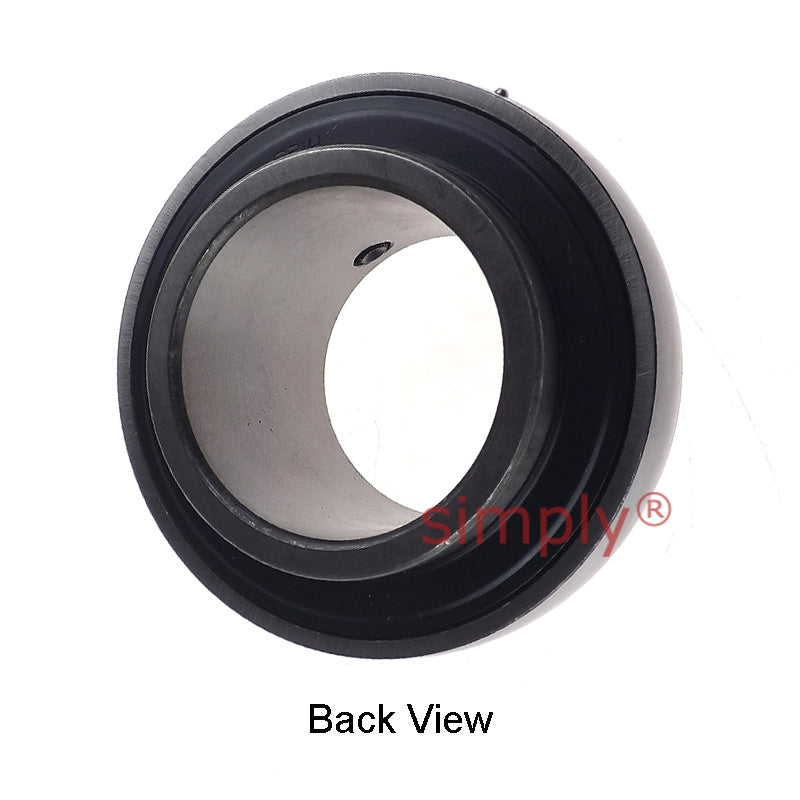

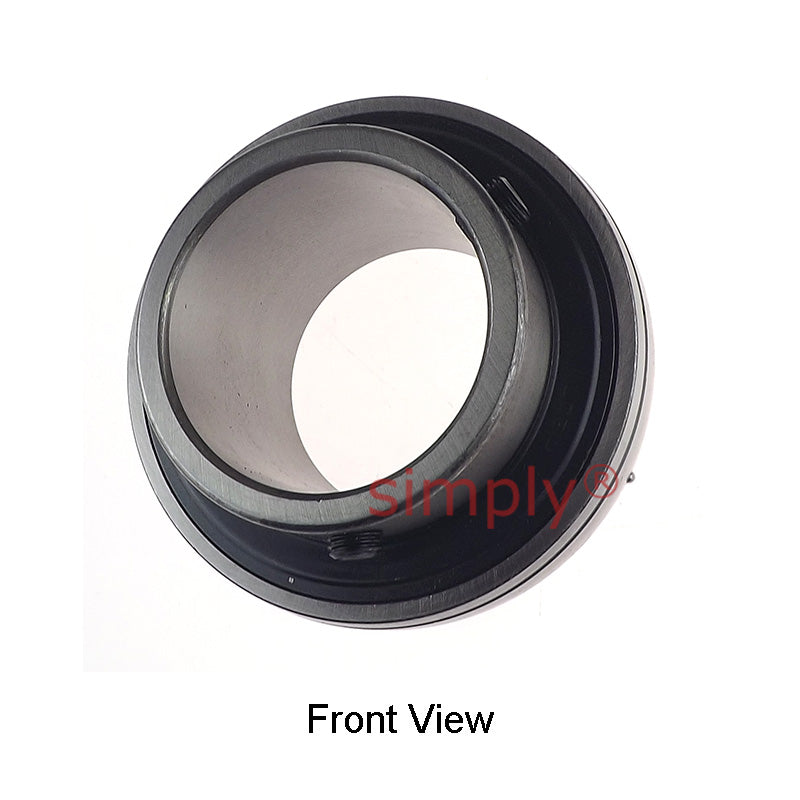

UC214 Metric Bearing Insert with 70mm Bore 125mm Outside Dia
UC214 Metric Bearing Insert with 70mm Bore 125mm Outside Dia
Regular price
£42.83
ex VAT£51.40inc. VAT
Regular price
Sale price
£42.83
ex VAT£51.40
inc. VAT
In stock
Price Break
3+
£38.12
4+
£35.98
9+
£35.55
19+
£35.12
49+
£34.69
99+
£34.26
499+
£32.12
999+
£31.69
1999+
£31.27
2999+
£30.84
4999+
£29.98
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 125mm
- Style:
- UC
Technical
Technical
| d | 70mm |
|---|---|
| D | 125mm |
| Bi | 74.6mm |
| Be | 30mm |
| n | 30.2mm |
| m | 44.4mm |
| G | 12mm |
| Grub screw | M12x1.5 |
| Weight | 2.05 kg |
| Dynamic load | 4870 kgf |
| Static load | 3810 kgf |
