SKU: UC.213-40

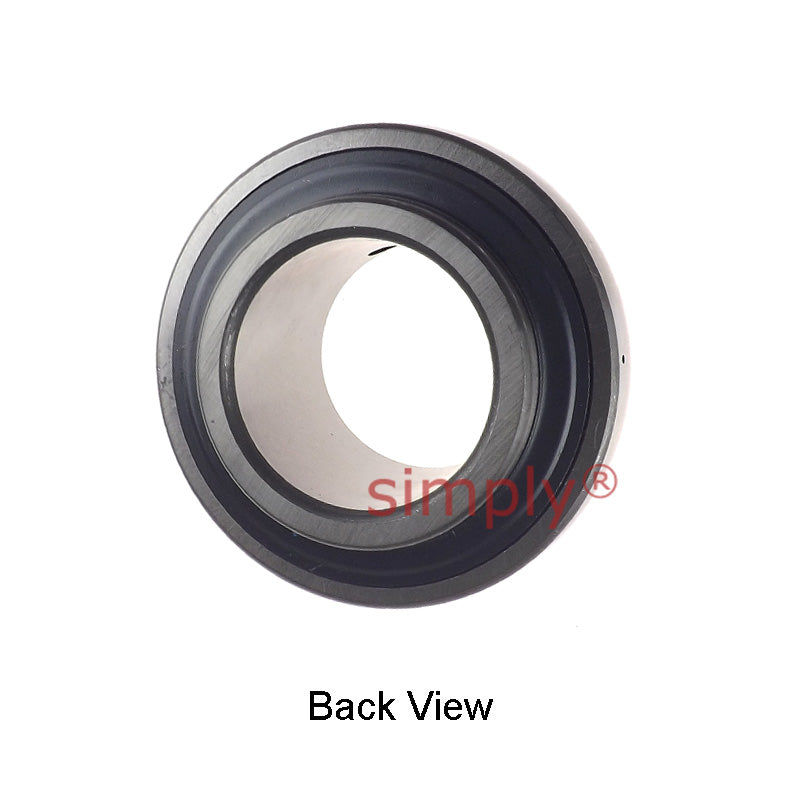

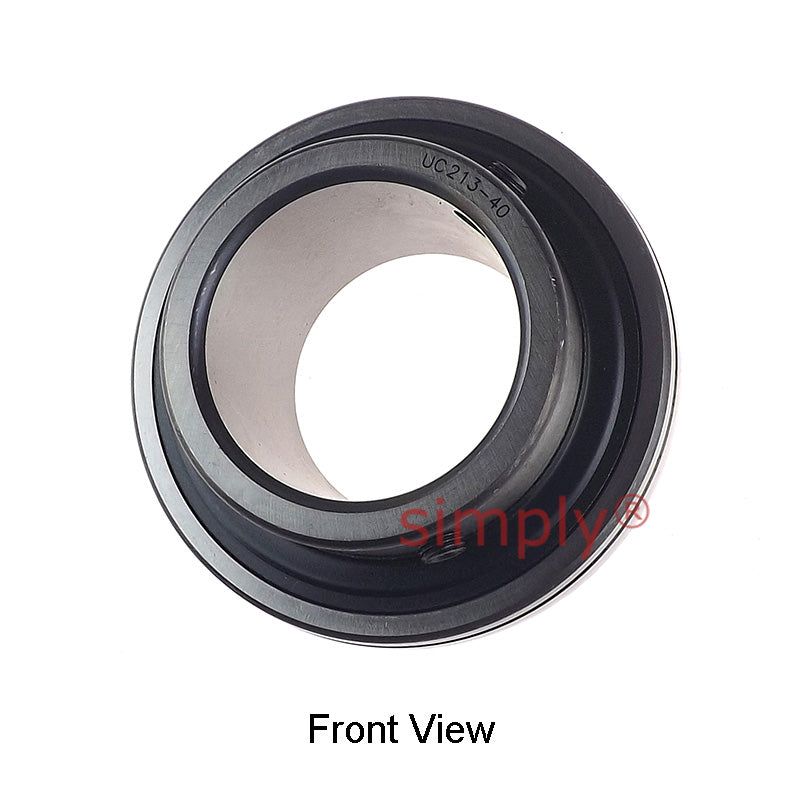

UC213-40 Imperial Bearing Insert with 2-1/2 inch Bore 120mm Outside Dia
UC213-40 Imperial Bearing Insert with 2-1/2 inch Bore 120mm Outside Dia
Regular price
£23.24
ex VAT£27.89inc. VAT
Regular price
Sale price
£23.24
ex VAT£27.89
inc. VAT
In stock
Price Break
3+
£20.68
4+
£19.52
9+
£19.29
19+
£19.06
49+
£18.82
99+
£18.59
499+
£17.43
999+
£17.20
1999+
£16.97
2999+
£16.73
4999+
£16.27
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 63.5mm = 2.5 (2-1/2) inch
- Outside Diameter:
- 120mm
- Style:
- UC
Technical
Technical
| d | 2-1/2 inch |
|---|---|
| D | 120mm |
| Bi | 65.1mm |
| Be | 28mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 1.94 kg |
| Dynamic load | 4480 kgf |
| Static load | 3470 kgf |
