SKU: UC.212-36

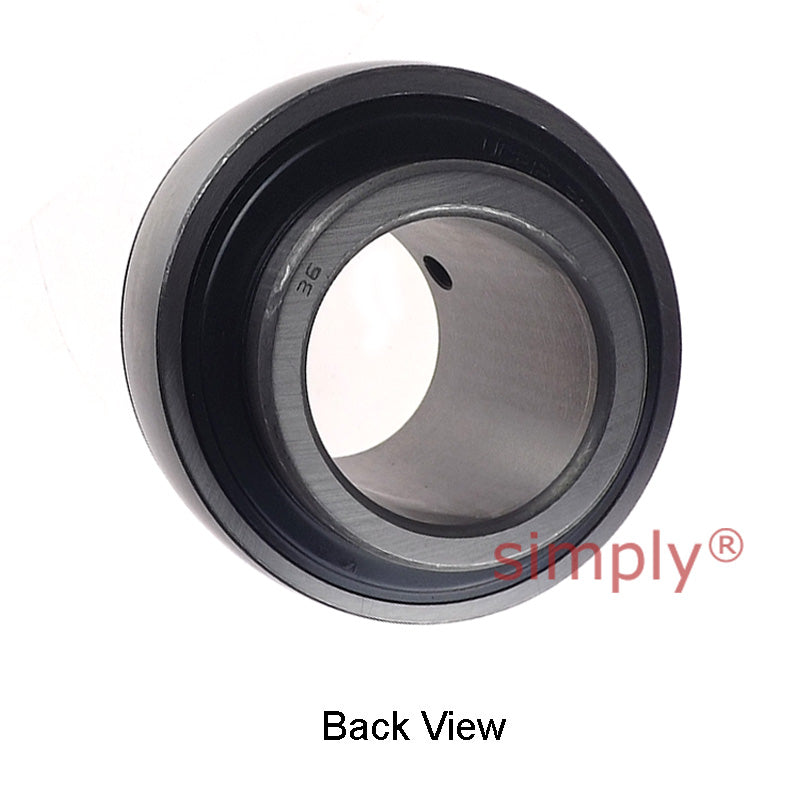

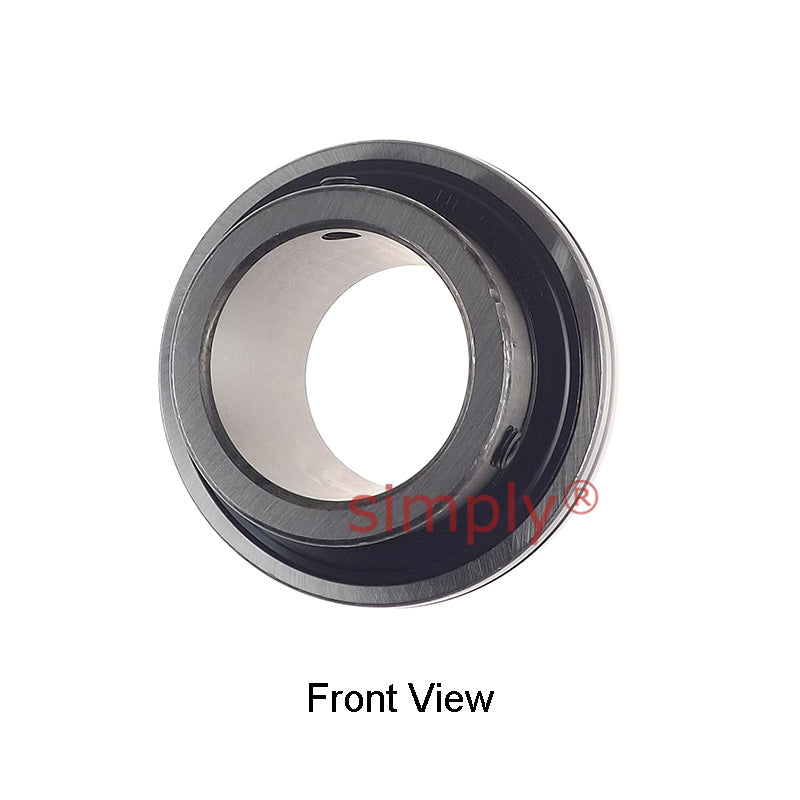

UC212-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
UC212-36 Imperial Bearing Insert with 2-1/4 inch Bore 110mm Outside Dia
Regular price
£14.41
ex VAT£17.29inc. VAT
Regular price
Sale price
£14.41
ex VAT£17.29
inc. VAT
In stock
Price Break
3+
£12.82
4+
£12.10
9+
£11.96
19+
£11.82
49+
£11.67
99+
£11.53
499+
£10.81
999+
£10.66
1999+
£10.52
2999+
£10.38
4999+
£10.09
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 57.15mm = 2.25 (2-1/4) inch
- Outside Diameter:
- 110mm
- Style:
- UC
Technical
Technical
| d | 2-1/4 inch |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 1.67 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
