SKU: UC.212

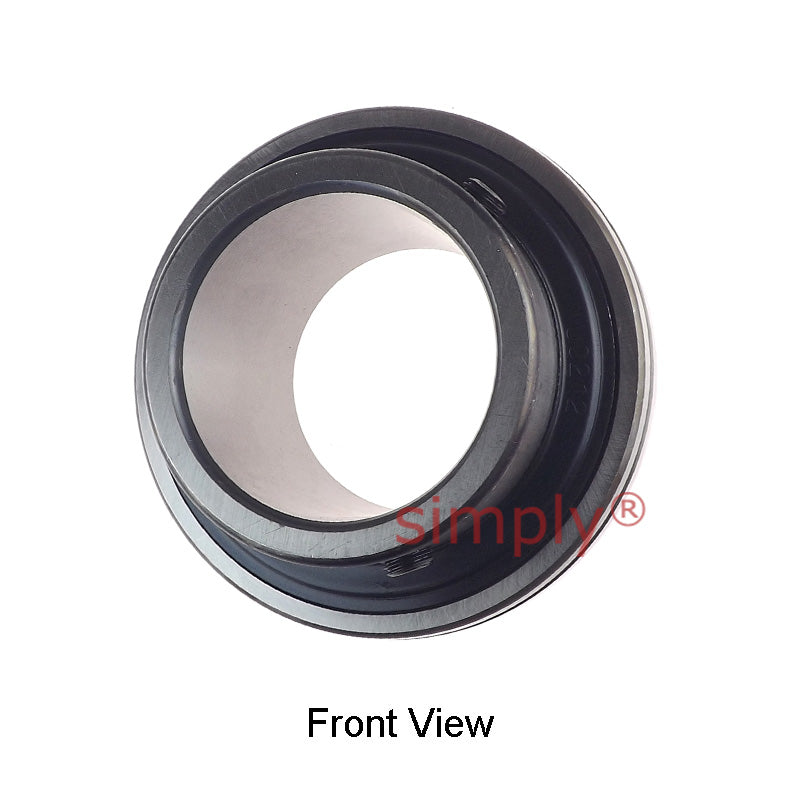

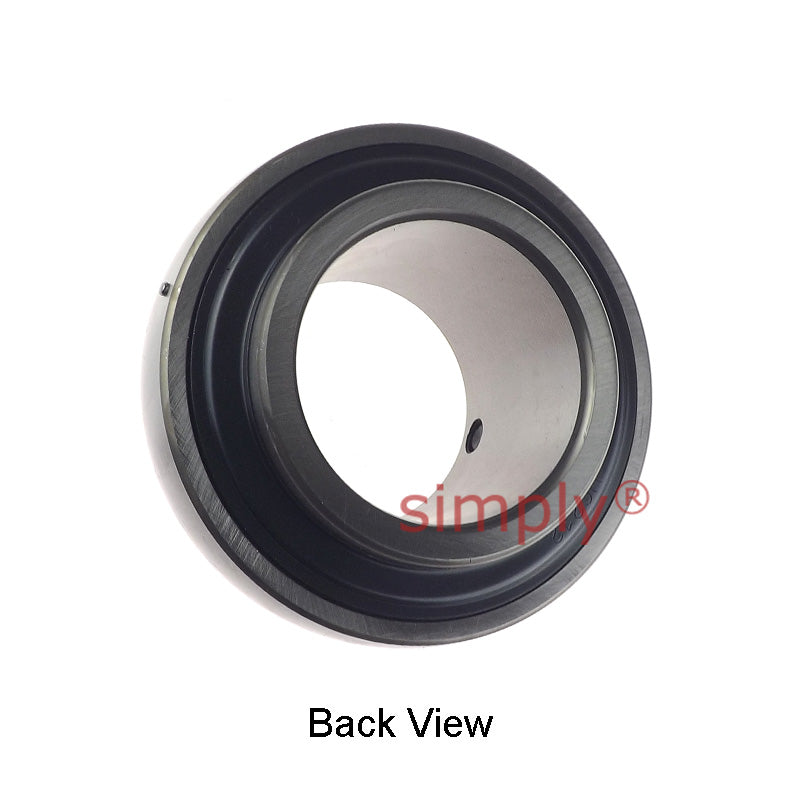

UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
UC212 Metric Bearing Insert with 60mm Bore 110mm Outside Dia
Regular price
£30.45
ex VAT£36.54inc. VAT
Regular price
Sale price
£30.45
ex VAT£36.54
inc. VAT
Equivalent to: 1060-60G
In stock
Price Break
3+
£27.10
4+
£25.58
9+
£25.27
19+
£24.97
49+
£24.66
99+
£24.36
499+
£22.84
999+
£22.53
1999+
£22.23
2999+
£21.92
4999+
£21.31
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1060-60G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Style:
- UC
Technical
Technical
| d | 60mm |
|---|---|
| D | 110mm |
| Bi | 65.1mm |
| Be | 27mm |
| n | 25.4mm |
| m | 39.7mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.45 kg |
| Dynamic load | 4100 kgf |
| Static load | 3150 kgf |
| Rec max speed | 2800 rpm |
