SKU: UC.211-34

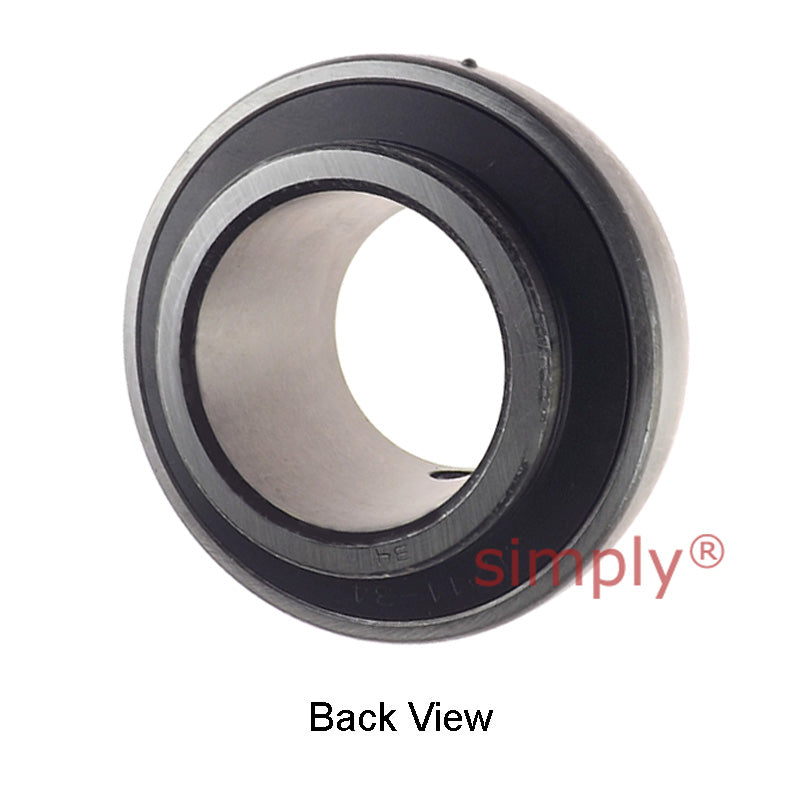

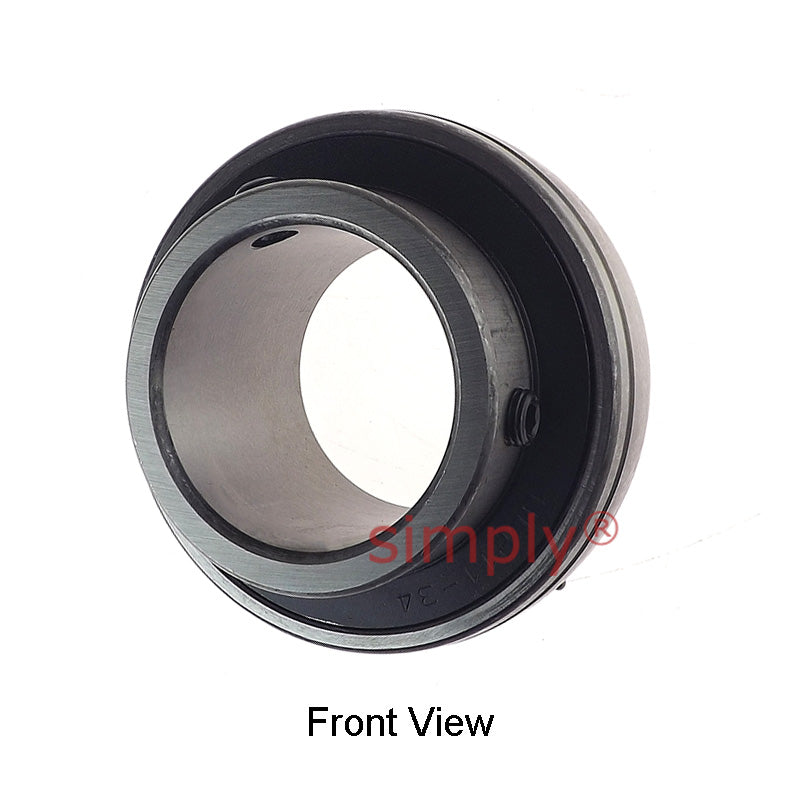

UC211-34 Imperial Bearing Insert with 2-1/8 inch Bore 100mm Outside Dia
UC211-34 Imperial Bearing Insert with 2-1/8 inch Bore 100mm Outside Dia
Regular price
£25.82
ex VAT£30.98inc. VAT
Regular price
Sale price
£25.82
ex VAT£30.98
inc. VAT
In stock
Price Break
3+
£22.98
4+
£21.69
9+
£21.43
19+
£21.17
49+
£20.91
99+
£20.65
499+
£19.36
999+
£19.10
1999+
£18.85
2999+
£18.59
4999+
£18.07
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 53.98mm = 2.125 (2-1/8) inch
- Outside Diameter:
- 100mm
- Style:
- UC
Technical
Technical
| d | 2-1/8 inch |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| n | 22.2mm |
| m | 33.4mm |
| G | 10mm |
| Grub screw | 3/8-24 UNF |
| Weight | 1.15 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
