SKU: UC.211-32

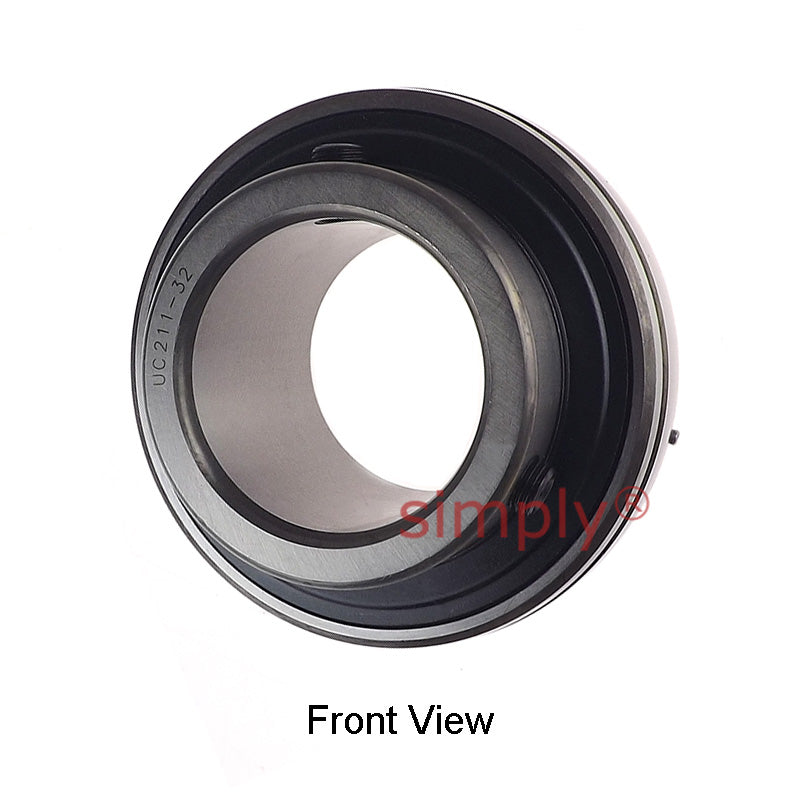

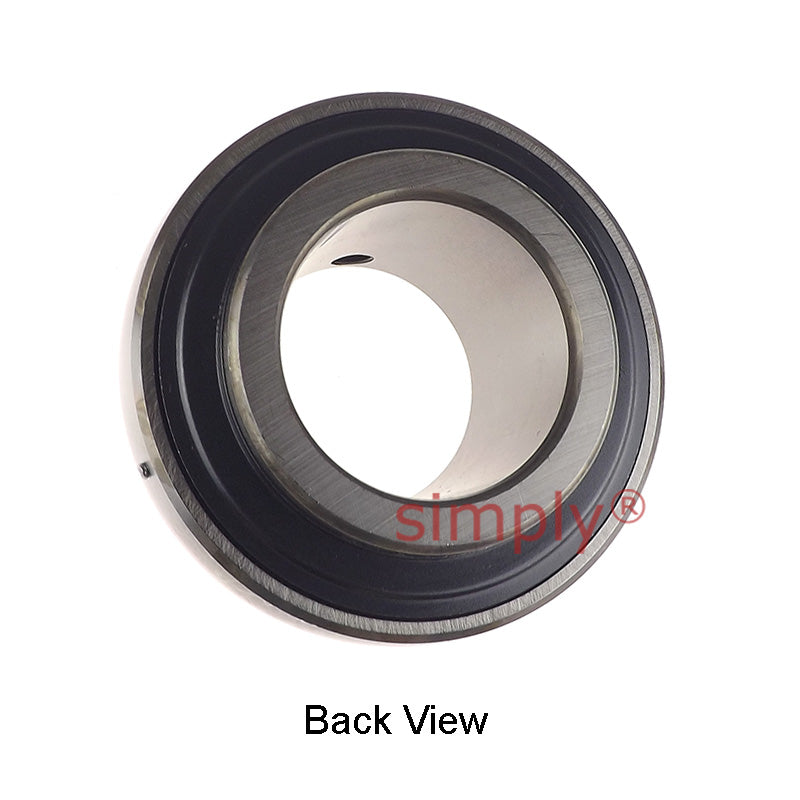

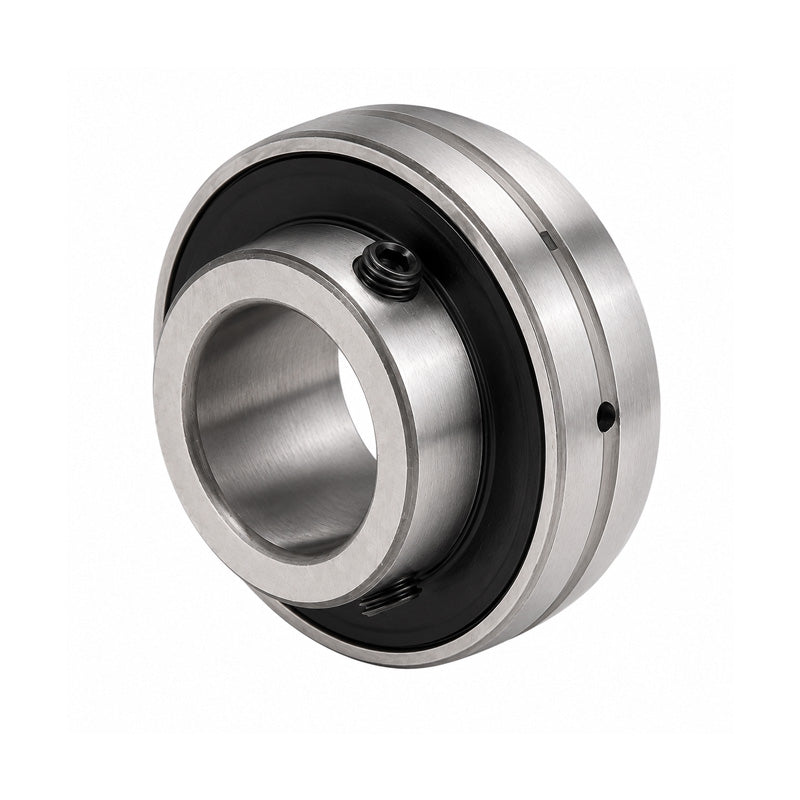

UC211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
UC211-32 Imperial Bearing Insert with 2 inch Bore 100mm Outside Dia
Regular price
£11.90
ex VAT£14.28inc. VAT
Regular price
Sale price
£11.90
ex VAT£14.28
inc. VAT
Equivalent to: 1055-2G
In stock
Price Break
3+
£10.59
4+
£10.00
9+
£9.88
19+
£9.76
49+
£9.64
99+
£9.52
499+
£8.93
999+
£8.81
1999+
£8.69
2999+
£8.57
4999+
£8.33
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1055-2G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 100mm
- Style:
- UC
Technical
Technical
| d | 2 inch |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| n | 22.2mm |
| m | 33.4mm |
| G | 10mm |
| Grub screw | 3/8-24 UNF |
| Weight | 1.26 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
