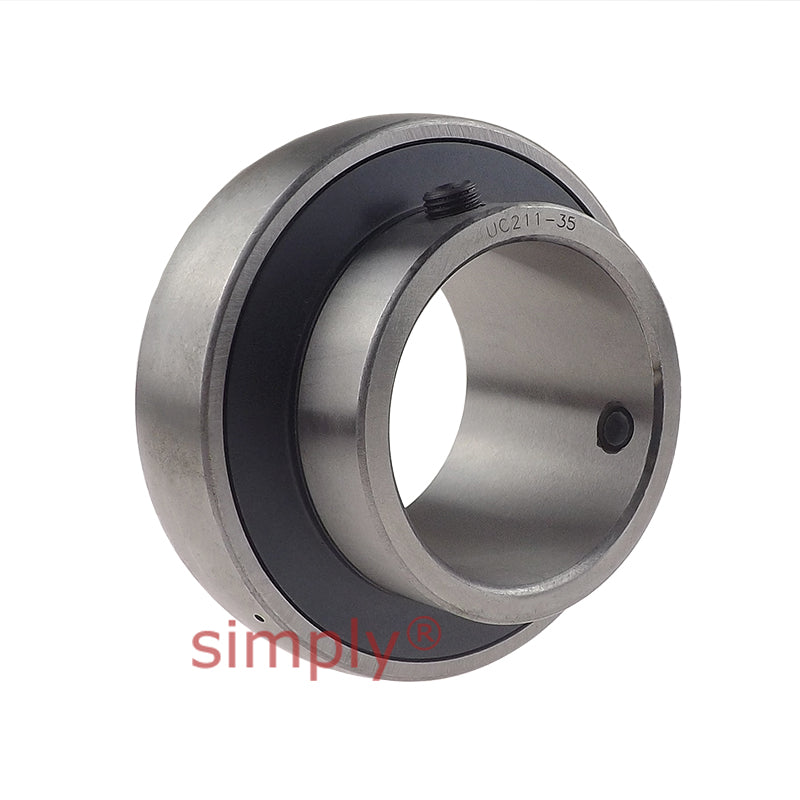

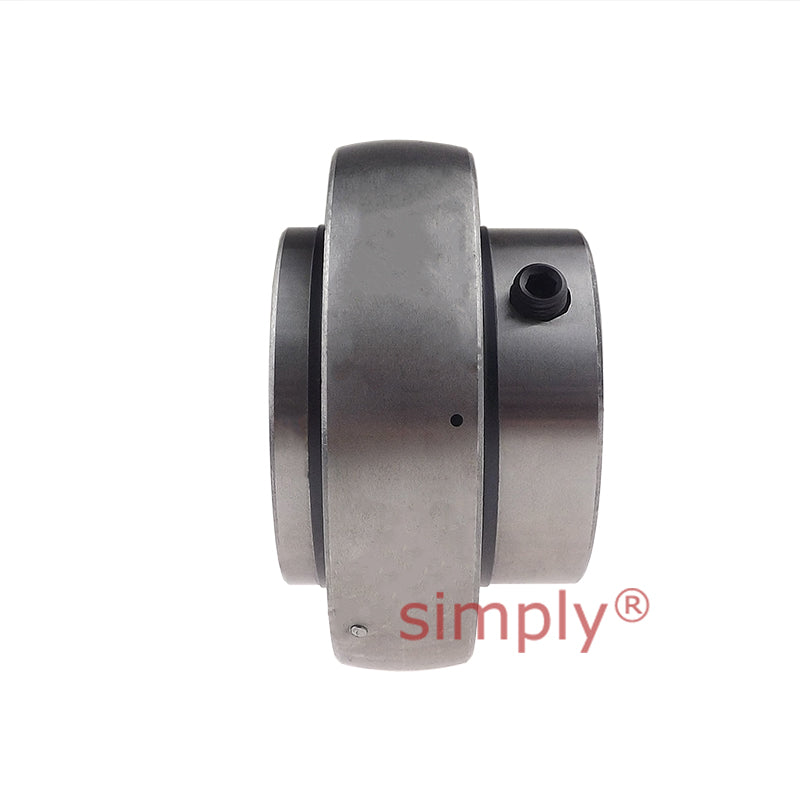

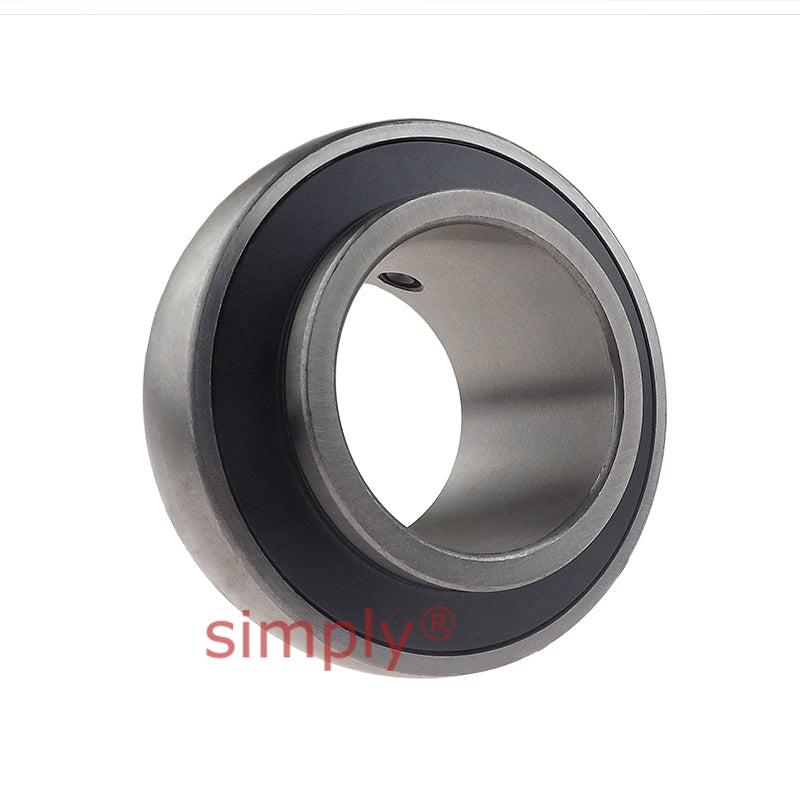

UC211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
UC211 Metric Bearing Insert with 55mm Bore 100mm Outside Dia
Regular price
£23.58
ex VAT£28.30inc. VAT
Regular price
Sale price
£23.58
ex VAT£28.30
inc. VAT
Equivalent to: 1055-55G
In stock
Price Break
10+
£20.99
19+
£19.81
29+
£19.57
39+
£19.34
49+
£19.10
74+
£18.86
99+
£17.69
199+
£17.45
249+
£17.21
499+
£16.98
999+
£16.51
Couldn't load pickup availability
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1055-55G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 100mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 55mm |
|---|---|
| D | 100mm |
| Bi | 55.6mm |
| Be | 25mm |
| n | 22.2mm |
| m | 33.4mm |
| G | 10mm |
| Grub screw | M10x1.0 |
| Weight | 1.09 kg |
| Dynamic load | 3400 kgf |
| Static load | 2550 kgf |
| Rec max speed | 3100 rpm |
