SKU: UC.210-32

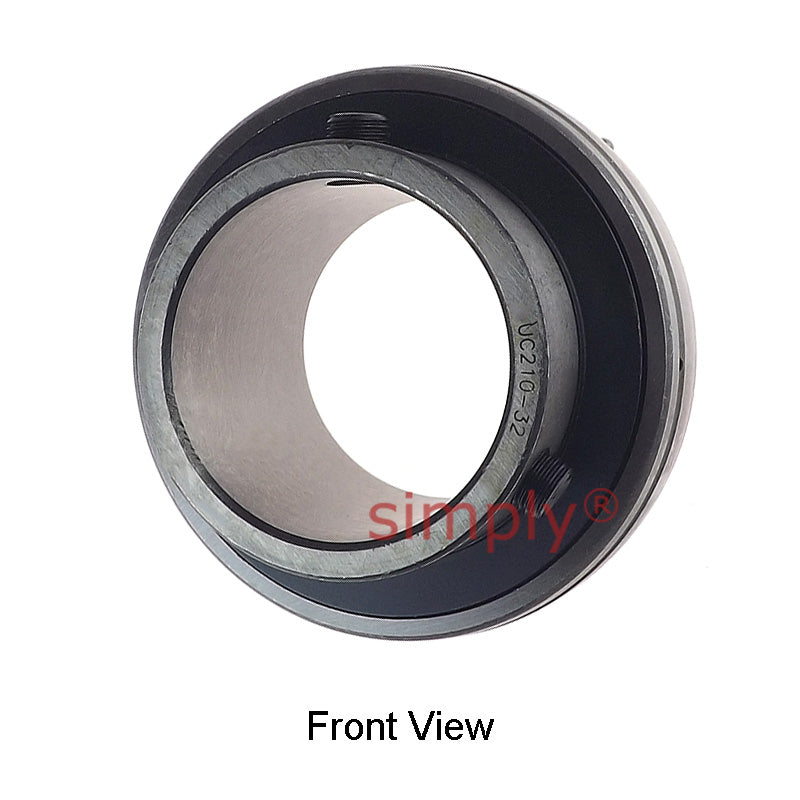

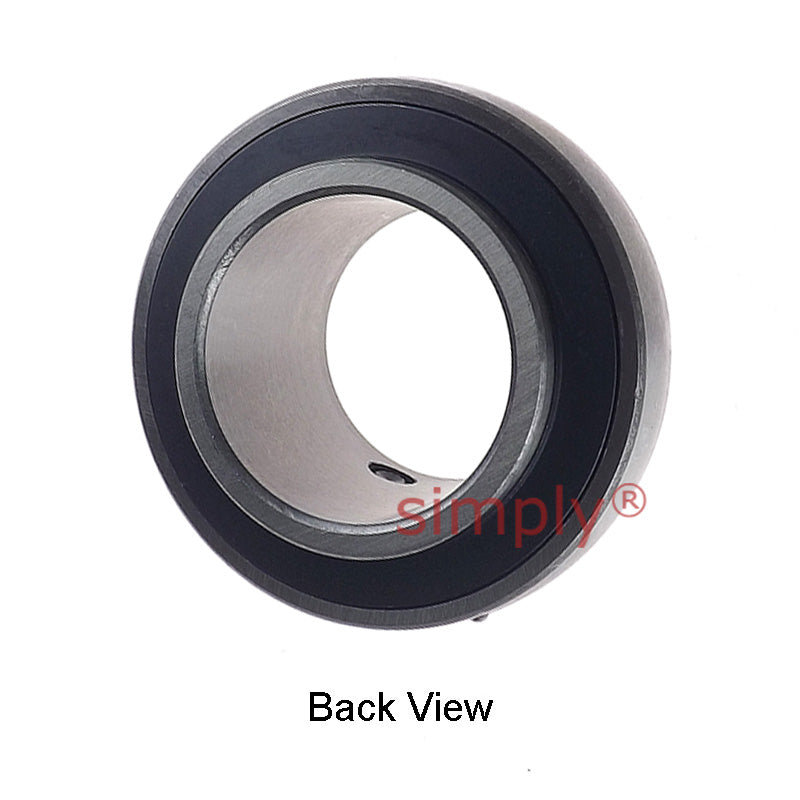

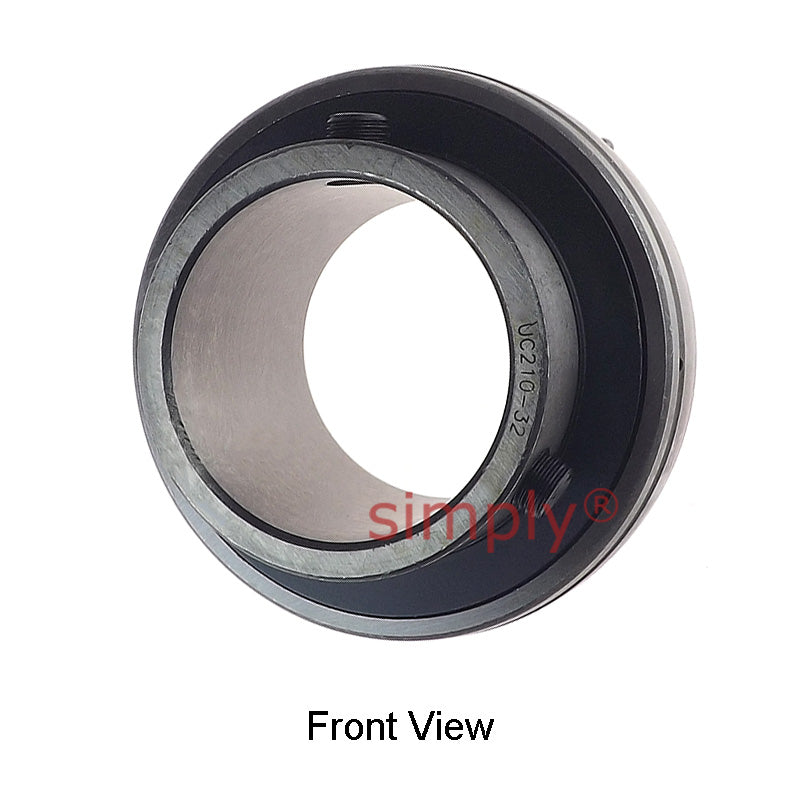

UC210-32 Imperial Bearing Insert with 2 inch Bore 90mm Outside Dia
UC210-32 Imperial Bearing Insert with 2 inch Bore 90mm Outside Dia
Regular price
£15.83
ex VAT£19.00inc. VAT
Regular price
Sale price
£15.83
ex VAT£19.00
inc. VAT
Equivalent to: 1050-2G
In stock
Price Break
3+
£14.09
4+
£13.30
9+
£13.14
19+
£12.98
49+
£12.82
99+
£12.66
499+
£11.87
999+
£11.71
1999+
£11.56
2999+
£11.40
4999+
£11.08
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1050-2G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 90mm
- Style:
- UC
Technical
Technical
| d | 2 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| n | 19mm |
| m | 32.6mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 0.82 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
