SKU: UC.210-31

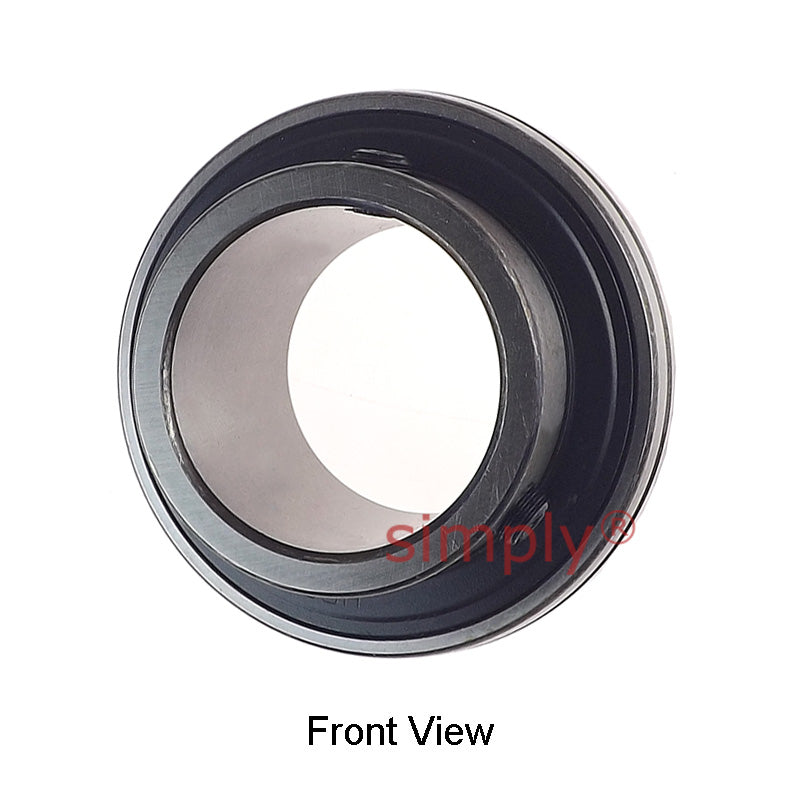

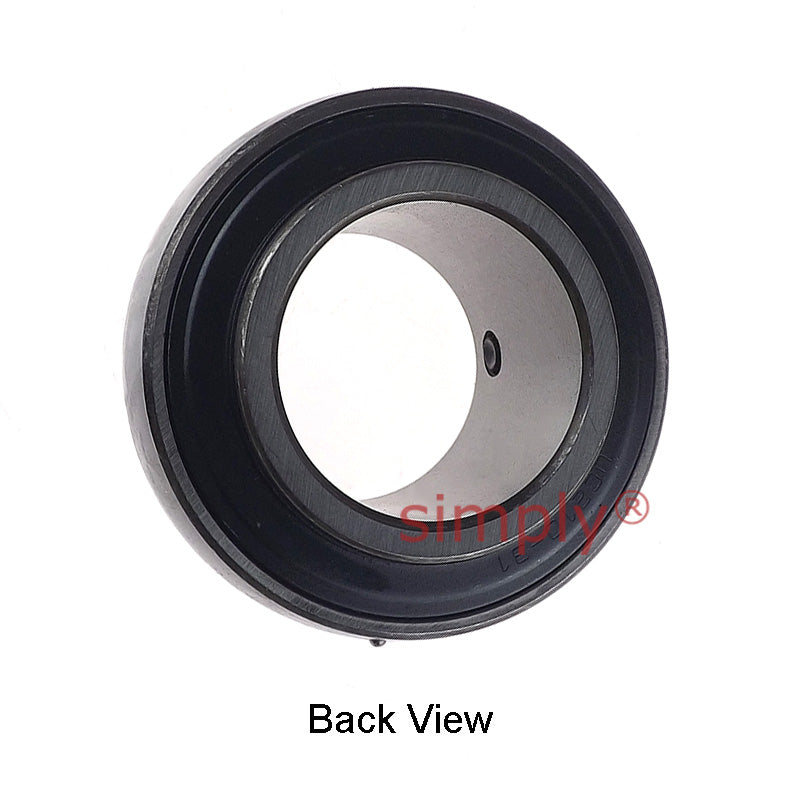

UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia
UC210-31 Imperial Bearing Insert with 1-15/16 inch Bore 90mm Outside Dia
Regular price
£8.24
ex VAT£9.89inc. VAT
Regular price
Sale price
£8.24
ex VAT£9.89
inc. VAT
Equivalent to: 1050-1-15/16G
In stock
Price Break
3+
£7.33
4+
£6.92
9+
£6.84
19+
£6.76
49+
£6.67
99+
£6.59
499+
£6.18
999+
£6.10
1999+
£6.02
2999+
£5.93
4999+
£5.77
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1050-1-15/16G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Outside Diameter:
- 90mm
- Style:
- UC
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| D | 90mm |
| Bi | 51.6mm |
| Be | 24mm |
| n | 19mm |
| m | 32.6mm |
| G | 10mm |
| Grub screw | 3/8"-24 UNF |
| Weight | 0.82 kg |
| Dynamic load | 2750 kgf |
| Static load | 2020 kgf |
| Rec max speed | 3400 rpm |
