SKU: UC.209-26

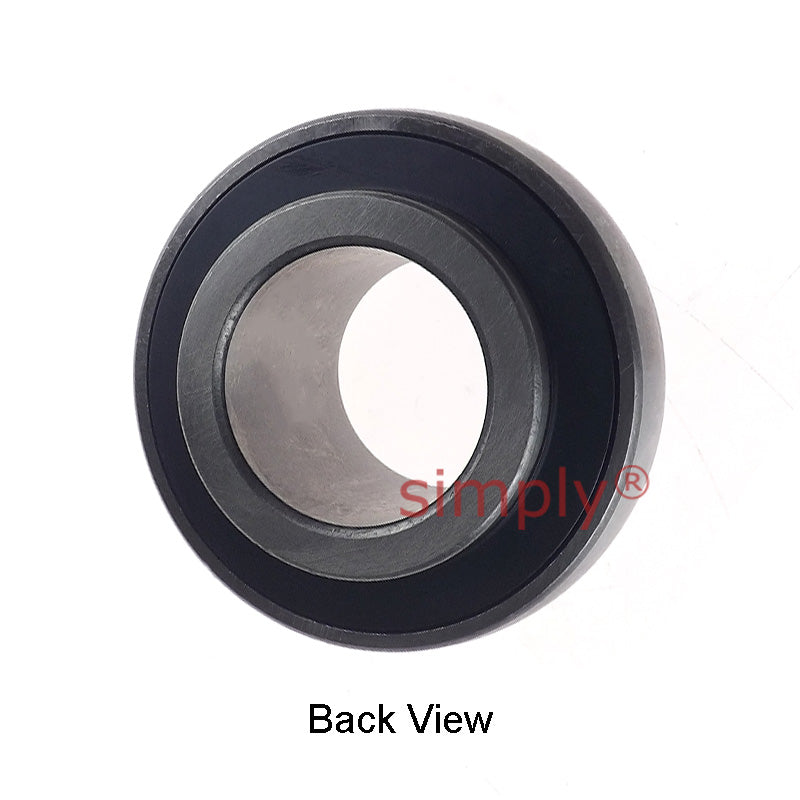

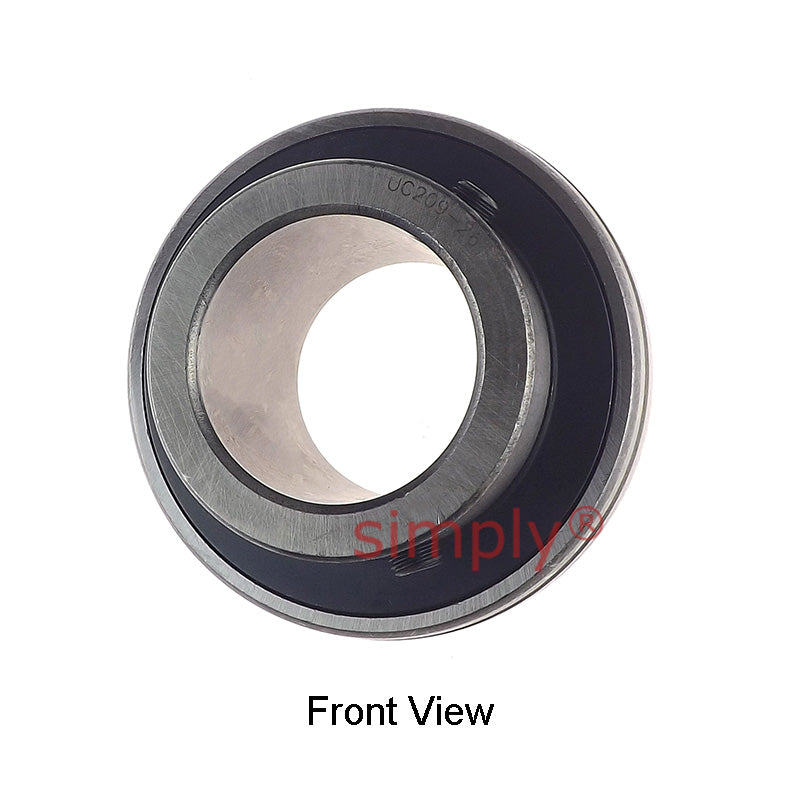

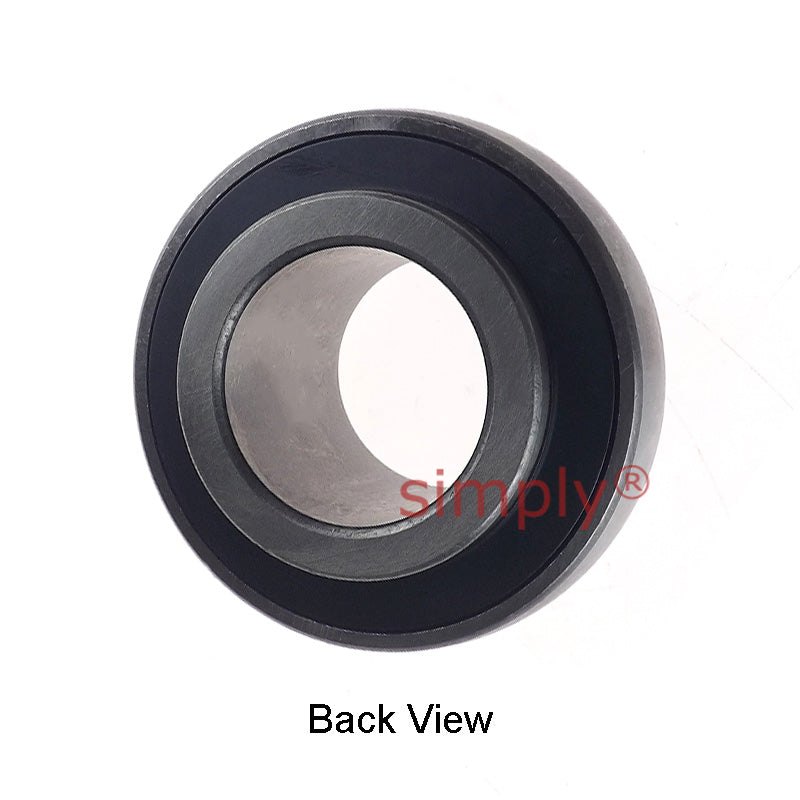

UC209-26 Imperial Bearing Insert with 1-5/8 inch Bore 85mm Outside Dia
UC209-26 Imperial Bearing Insert with 1-5/8 inch Bore 85mm Outside Dia
Regular price
£4.77
ex VAT£5.72inc. VAT
Regular price
£8.67
Sale price
£4.77
ex VAT£10.40£5.72
inc. VAT
Equivalent to: 1045-1-5/8G
In stock
Price Break
10+
£4.25
19+
£4.01
29+
£3.96
39+
£3.91
49+
£3.86
74+
£3.82
99+
£3.58
199+
£3.53
249+
£3.48
499+
£3.43
999+
£3.34
Couldn't load pickup availability
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1045-1-5/8G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 41.28mm = 1.625 (1-5/8) inch
- Outside Diameter:
- 85mm
- Style:
- UC
- Type:
- Spherical Outer
Technical
Technical
| d | 1-5/8 inch |
|---|---|
| D | 85mm |
| Bi | 49.2mm |
| Be | 22mm |
| n | 19mm |
| m | 30.2mm |
| G | 10mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.78 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
| Rec max speed | 3700 rpm |
