SKU: UC.208-25

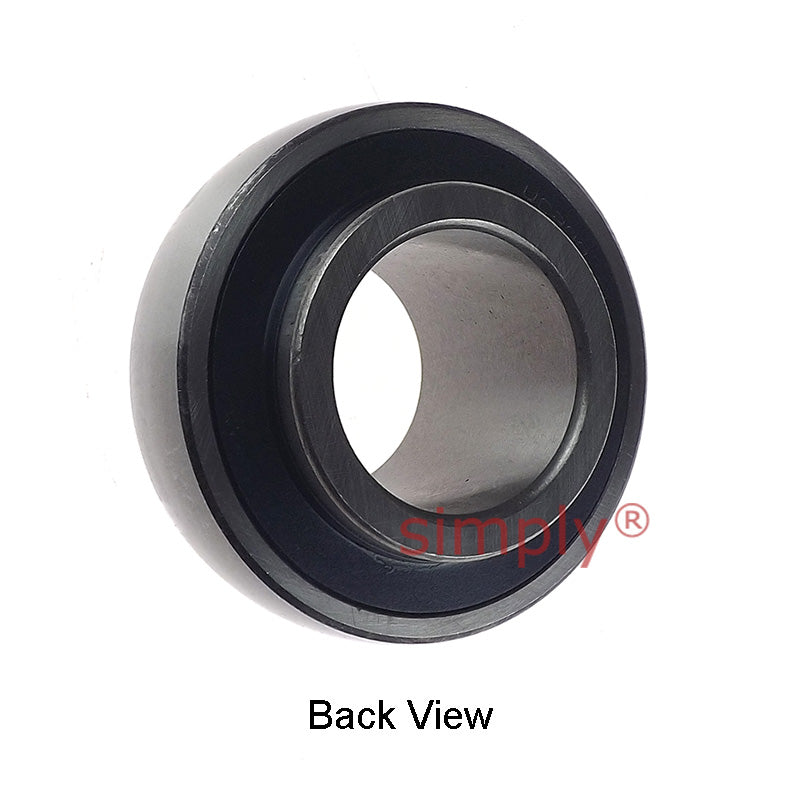

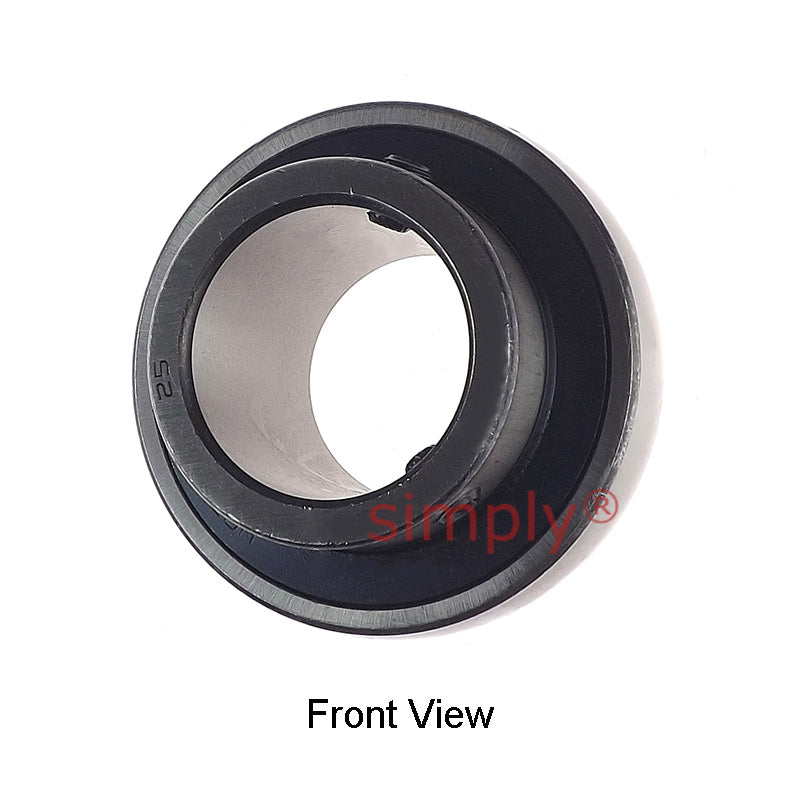

UC208-25 Imperial Bearing Insert with 1-9/16 inch Bore 80mm Outside Dia
UC208-25 Imperial Bearing Insert with 1-9/16 inch Bore 80mm Outside Dia
Regular price
£11.43
ex VAT£13.72inc. VAT
Regular price
Sale price
£11.43
ex VAT£13.72
inc. VAT
In stock
Price Break
3+
£10.18
4+
£9.60
9+
£9.49
19+
£9.38
49+
£9.26
99+
£9.15
499+
£8.58
999+
£8.46
1999+
£8.35
2999+
£8.23
4999+
£8.00
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 39.69mm = 1.563 (1-9/16) inch
- Outside Diameter:
- 80mm
- Style:
- UC
Technical
Technical
| d | 1-9/16 inch |
|---|---|
| D | 80mm |
| Bi | 49.2mm |
| Be | 21mm |
| n | 19mm |
| m | 30.2mm |
| G | 8mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.65 kg |
| Dynamic load | 2560 kgf |
| Static load | 1810 kgf |
