SKU: UC.207-21

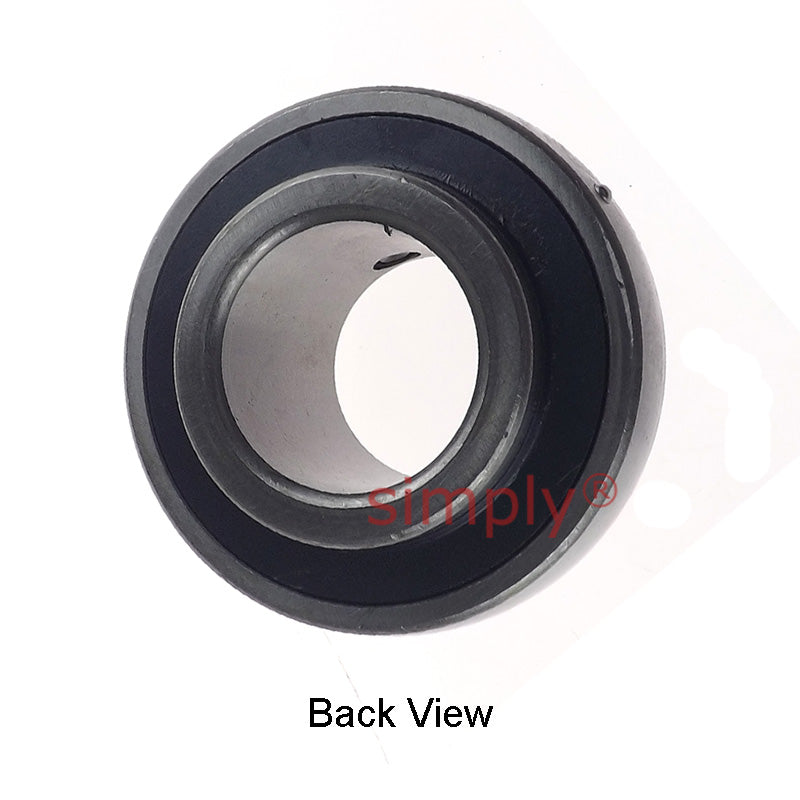

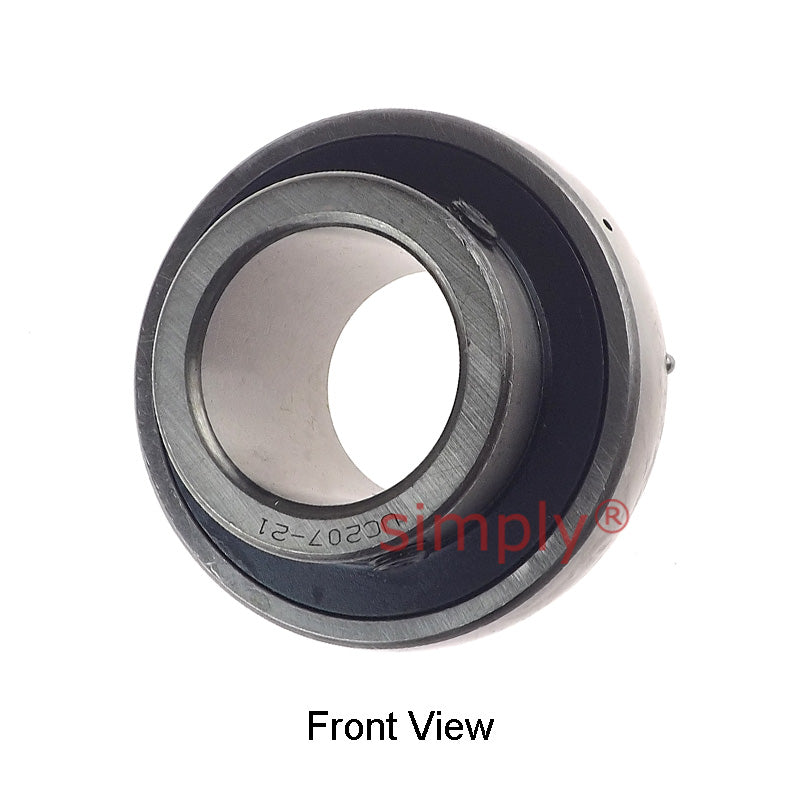

UC207-21 Imperial Bearing Insert with 1-5/16 inch Bore 72mm Outside Dia
UC207-21 Imperial Bearing Insert with 1-5/16 inch Bore 72mm Outside Dia
Regular price
£10.33
ex VAT£12.40inc. VAT
Regular price
Sale price
£10.33
ex VAT£12.40
inc. VAT
Equivalent to: 1035-1-5/16G
In stock
Price Break
3+
£9.20
4+
£8.68
9+
£8.58
19+
£8.47
49+
£8.37
99+
£8.27
499+
£7.75
999+
£7.65
1999+
£7.54
2999+
£7.44
4999+
£7.23
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1035-1-5/16G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 33.33mm = 1.312 (1-5/16) inch
- Outside Diameter:
- 72mm
- Style:
- UC
Technical
Technical
| d | 1-5/16 inch |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | 5/16"-24 UNF |
| Weight | 0.51 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
