SKU: UC.207

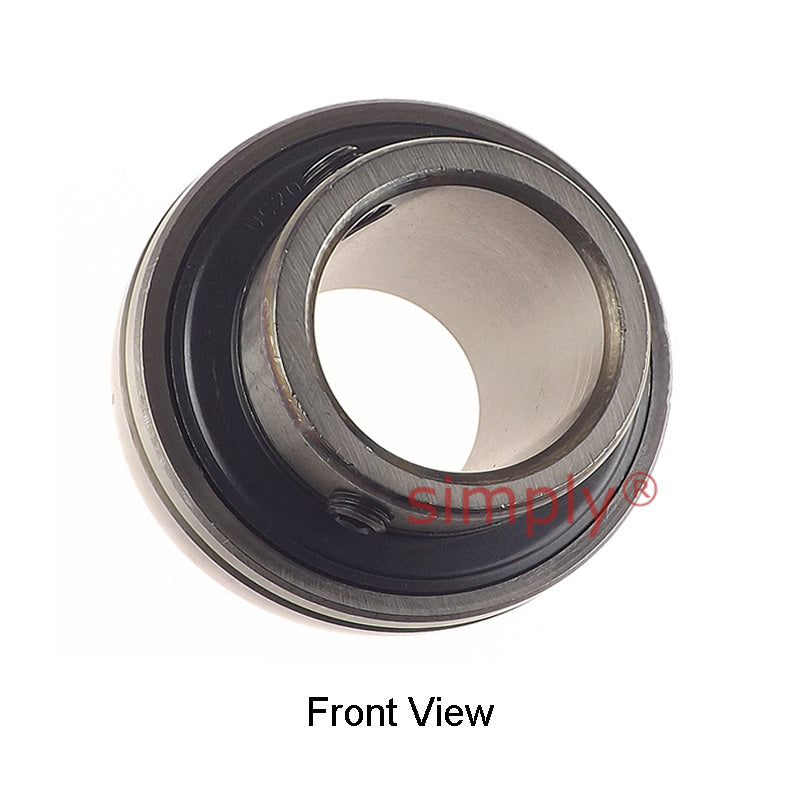

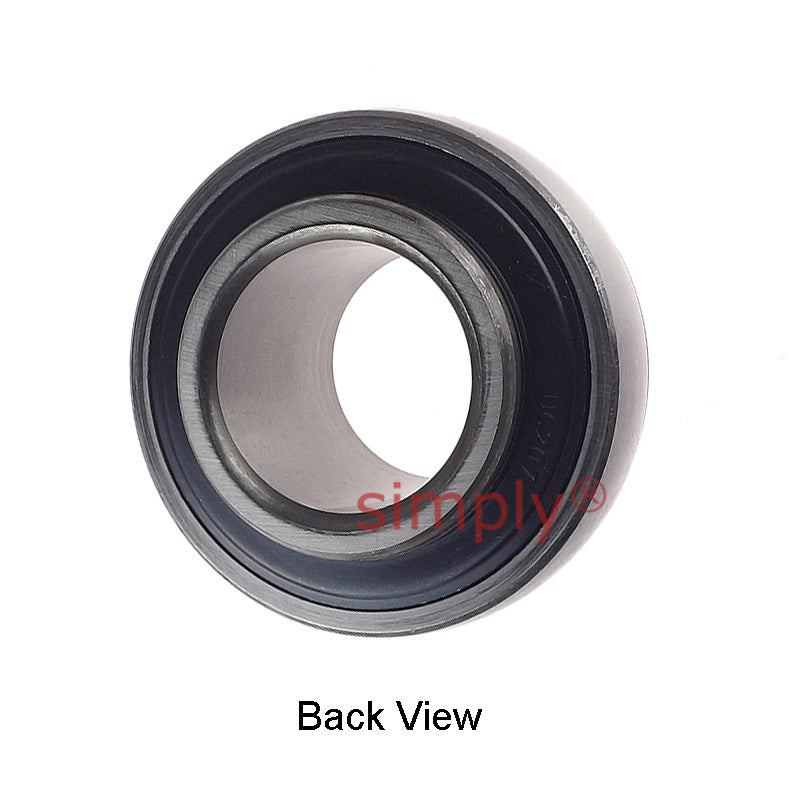

UC207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
UC207 Metric Bearing Insert with 35mm Bore 72mm Outside Dia
Regular price
£9.26
ex VAT£11.11inc. VAT
Regular price
Sale price
£9.26
ex VAT£11.11
inc. VAT
Equivalent to: 1035-35G
In stock
Price Break
3+
£8.24
4+
£7.78
9+
£7.69
19+
£7.59
49+
£7.50
99+
£7.41
499+
£6.95
999+
£6.85
1999+
£6.76
2999+
£6.67
4999+
£6.48
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1035-35G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 72mm
- Style:
- UC
Technical
Technical
| d | 35mm |
|---|---|
| D | 72mm |
| Bi | 42.9mm |
| Be | 20mm |
| n | 17.5mm |
| m | 25.4mm |
| G | 6.5mm |
| Grub screw | M8x1.0 |
| Weight | 0.48 kg |
| Dynamic load | 2010 kgf |
| Static load | 1390 kgf |
| Rec max speed | 4500 rpm |
