SKU: UC.204

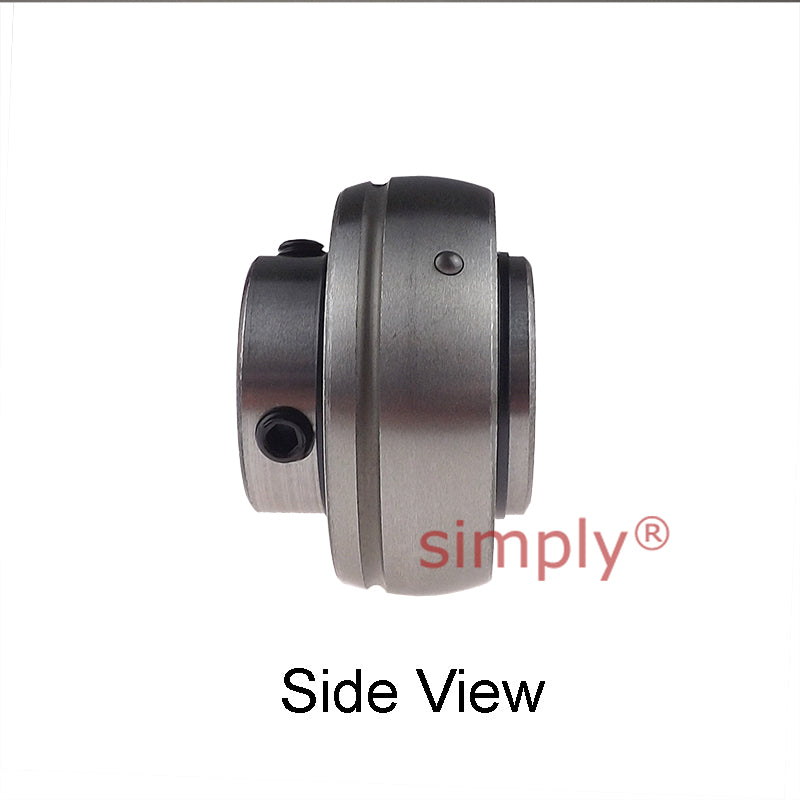

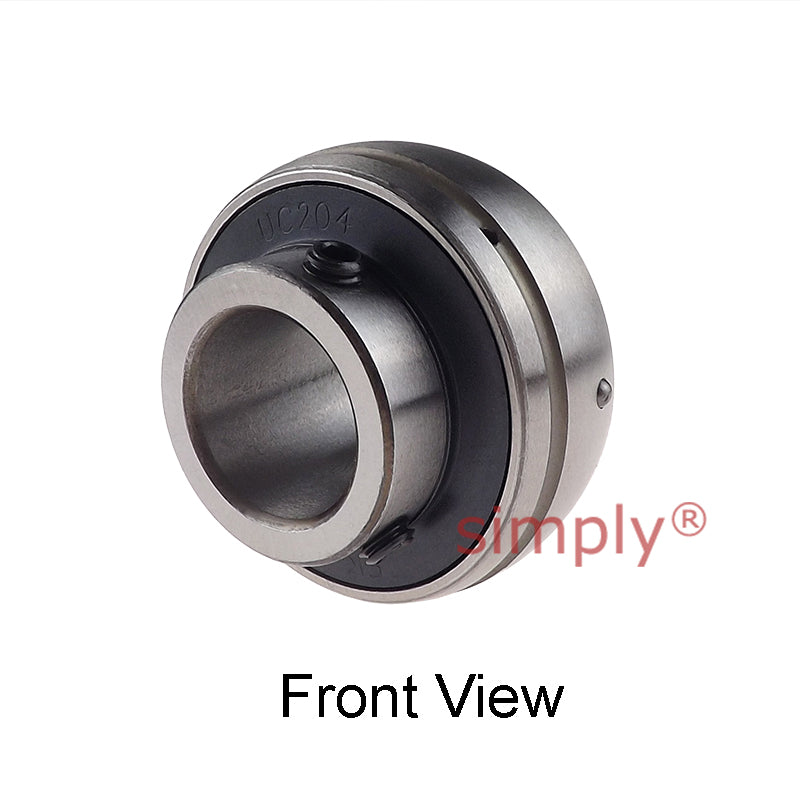

UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
UC204 Metric Bearing Insert with 20mm Bore 47mm Outside Dia
Regular price
£5.33
ex VAT£6.40inc. VAT
Regular price
Sale price
£5.33
ex VAT£6.40
inc. VAT
Equivalent to: 1020-20G
In stock
Price Break
3+
£4.75
4+
£4.48
9+
£4.43
19+
£4.37
49+
£4.32
99+
£4.27
499+
£4.00
999+
£3.95
1999+
£3.89
2999+
£3.84
4999+
£3.73
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
Equivalent: 1020-20G
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 47mm
- Style:
- UC
Technical
Technical
| d | 20mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | M6x1 |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
| Rec max speed | 7450 rpm |
