SKU: UC.202

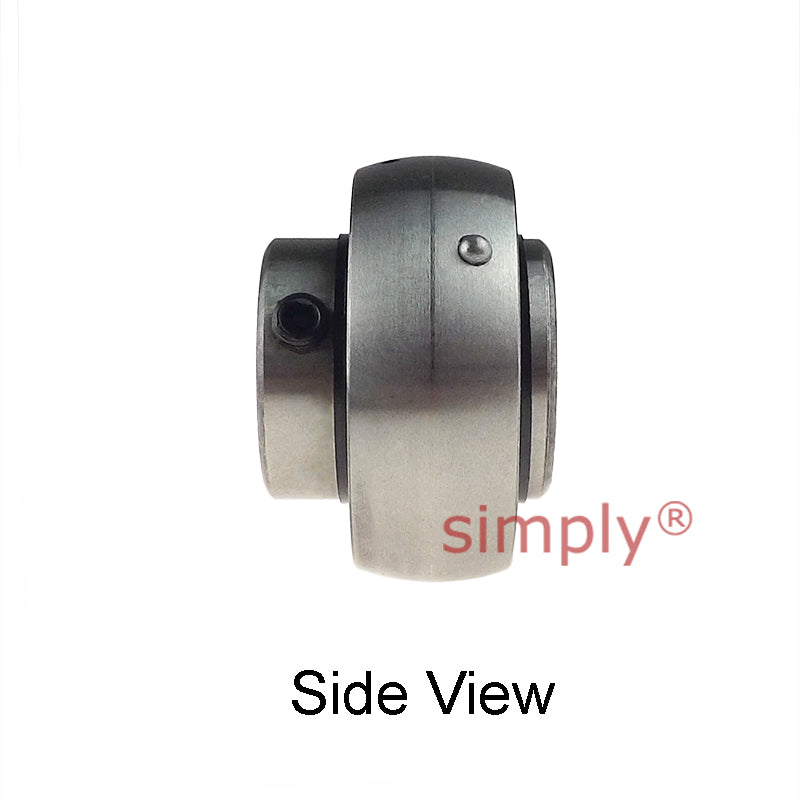

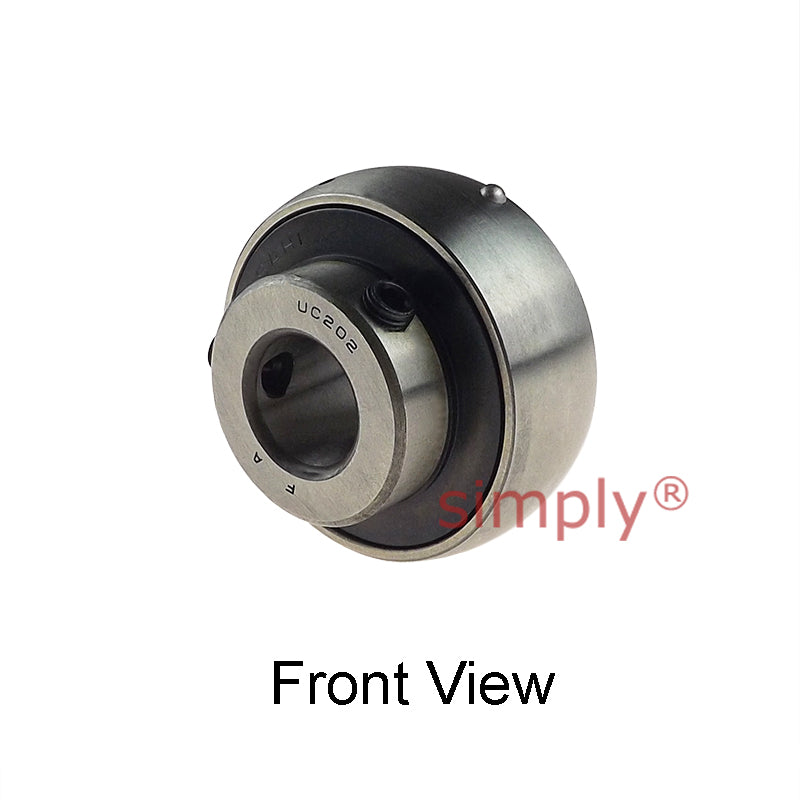

UC202 Metric Bearing Insert with 15mm Bore 47mm Outside Dia
UC202 Metric Bearing Insert with 15mm Bore 47mm Outside Dia
Regular price
£7.92
ex VAT£9.50inc. VAT
Regular price
Sale price
£7.92
ex VAT£9.50
inc. VAT
In stock
Price Break
3+
£7.04
4+
£6.65
9+
£6.57
19+
£6.49
49+
£6.41
99+
£6.33
499+
£5.94
999+
£5.86
1999+
£5.78
2999+
£5.70
4999+
£5.54
Share this product
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 47mm
- Style:
- UC
Technical
Technical
| d | 15mm |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | M6x1 |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
