SKU: UC.201-8

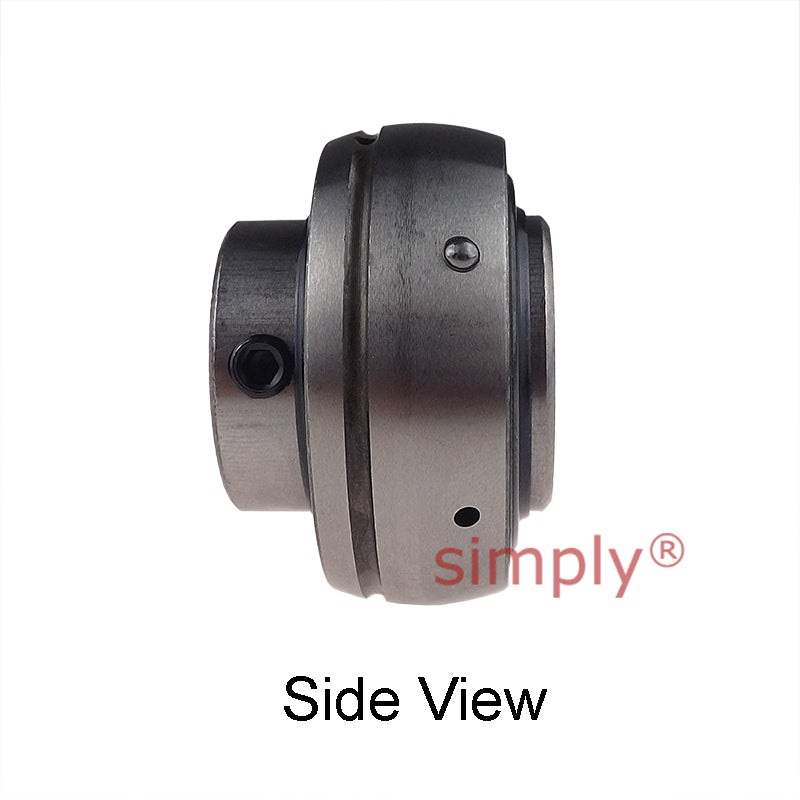

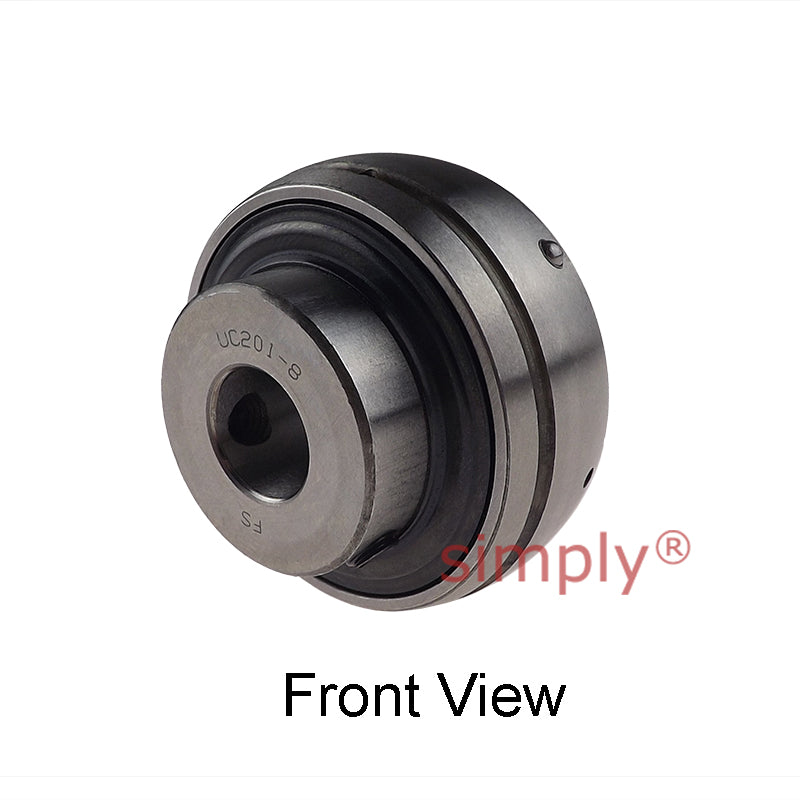

UC201-8 Imperial Bearing Insert with 1/2 inch Bore 47mm Outside Dia
UC201-8 Imperial Bearing Insert with 1/2 inch Bore 47mm Outside Dia
Regular price
£6.75
ex VAT£8.10inc. VAT
Regular price
Sale price
£6.75
ex VAT£8.10
inc. VAT
In stock
Price Break
3+
£6.01
4+
£5.67
9+
£5.60
19+
£5.54
49+
£5.47
99+
£5.40
499+
£5.06
999+
£5.00
1999+
£4.93
2999+
£4.86
4999+
£4.73
Description
Description
|
UC or 10 -- G Series: Normal duty bearing insert with 2 grub screws to allow tightening against the shaft once fitted.
These inserts are ideal replacements for housed types which can easily be removed from the housings when replacement is required |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Outside Diameter:
- 47mm
- Style:
- UC
Technical
Technical
| d | 1/2 inch |
|---|---|
| D | 47mm |
| Bi | 31mm |
| Be | 17mm |
| n | 12.7mm |
| m | 18.3mm |
| G | 4.8mm |
| Grub screw | 1/4"-28 UNF |
| Weight | 0.21 kg |
| Dynamic load | 1000 kgf |
| Static load | 630 kgf |
