SKU: TUJ60TF-SKF

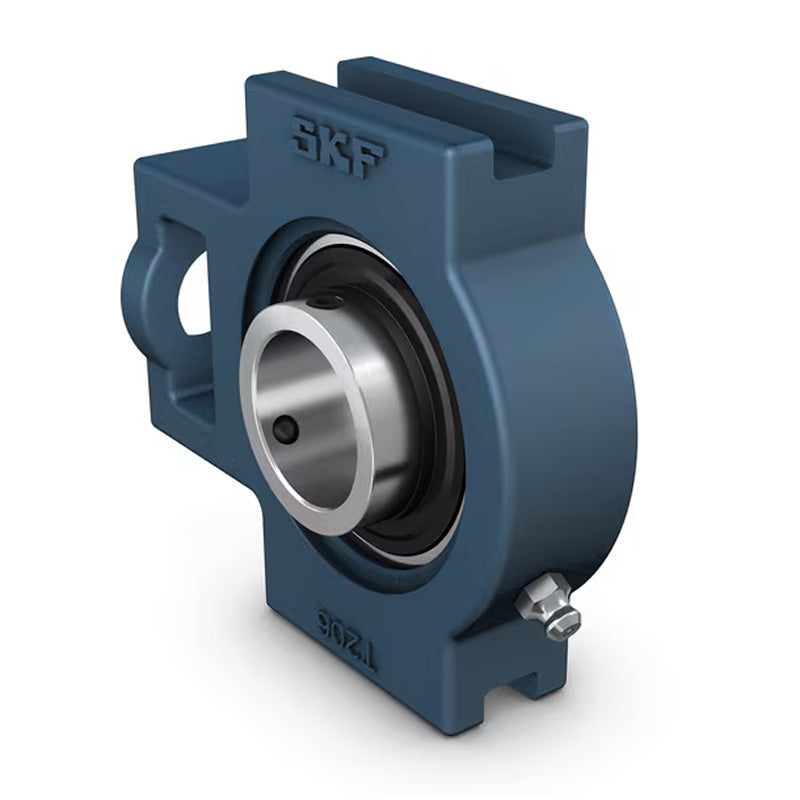

SKF TUJ60TF Grub Screw Type Take Up Unit 60mm Bore
SKF TUJ60TF Grub Screw Type Take Up Unit 60mm Bore
Regular price
£174.72
ex VAT£209.66inc. VAT
Regular price
Sale price
£174.72
ex VAT£209.66
inc. VAT
In stock
Price Break
10+
£155.50
20+
£146.76
30+
£145.01
40+
£143.27
50+
£141.52
75+
£139.77
100+
£131.04
200+
£129.29
250+
£127.54
500+
£125.80
1000+
£122.30
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Style:
- TUJ
Technical
Technical
| d | 60mm |
|---|---|
| A | 60mm |
| A1 | 22mm |
| A2 | 44mm |
| B | 65.1mm |
| D1 | 35mm |
| H | 146mm |
| H1 | 130mm |
| H2 | 102mm |
| L | 186mm |
| L1 | 118mm |
| L2 | 19mm |
| L3 | 100mm |
| N | 63.5mm |
| N1 | 32mm |
| s1 | 39.7mm |
| Static load Cr | 36 kN |
| Dynamic load Cor | 52.7 kN |
| Fatigue load limit Pu | 1.53 kN |
| Limiting speed | 3400 rpm |
| Weight | 5 kg |
