SKU: TUJ50TF-SKF

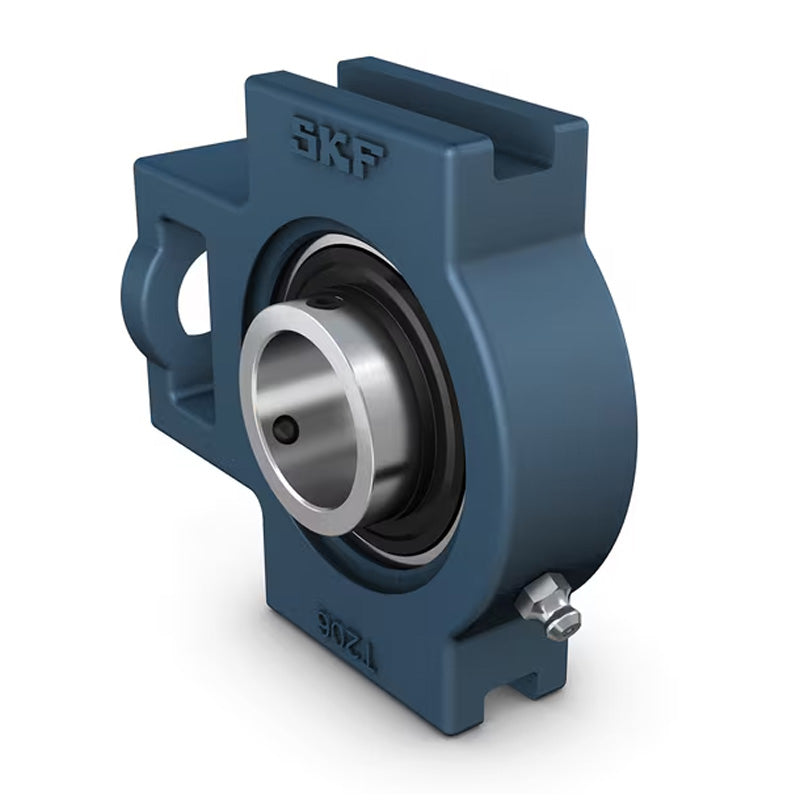

SKF TUJ50TF Grub Screw Type Take Up Unit 50mm Bore
SKF TUJ50TF Grub Screw Type Take Up Unit 50mm Bore
Regular price
£108.58
ex VAT£130.30inc. VAT
Regular price
Sale price
£108.58
ex VAT£130.30
inc. VAT
In stock
Price Break
10+
£96.64
20+
£91.21
30+
£90.12
40+
£89.04
50+
£87.95
75+
£86.86
100+
£81.44
200+
£80.35
250+
£79.26
500+
£78.18
1000+
£76.01
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Style:
- TUJ
Technical
Technical
| d | 50mm |
|---|---|
| A | 49mm |
| A1 | 16mm |
| A2 | 36mm |
| B | 51.6mm |
| D1 | 29mm |
| H | 117mm |
| H1 | 102mm |
| H2 | 83mm |
| L | 149mm |
| L1 | 90mm |
| L2 | 16mm |
| L3 | 86mm |
| N | 49mm |
| N1 | 19mm |
| s1 | 32.6mm |
| Static load Cr | 23.2 kN |
| Dynamic load Cor | 35.1 kN |
| Fatigue load limit Pu | 0.98 kN |
| Limiting speed | 4000 rpm |
| Weight | 2.5 kg |
