SKU: TU45FM-SKF

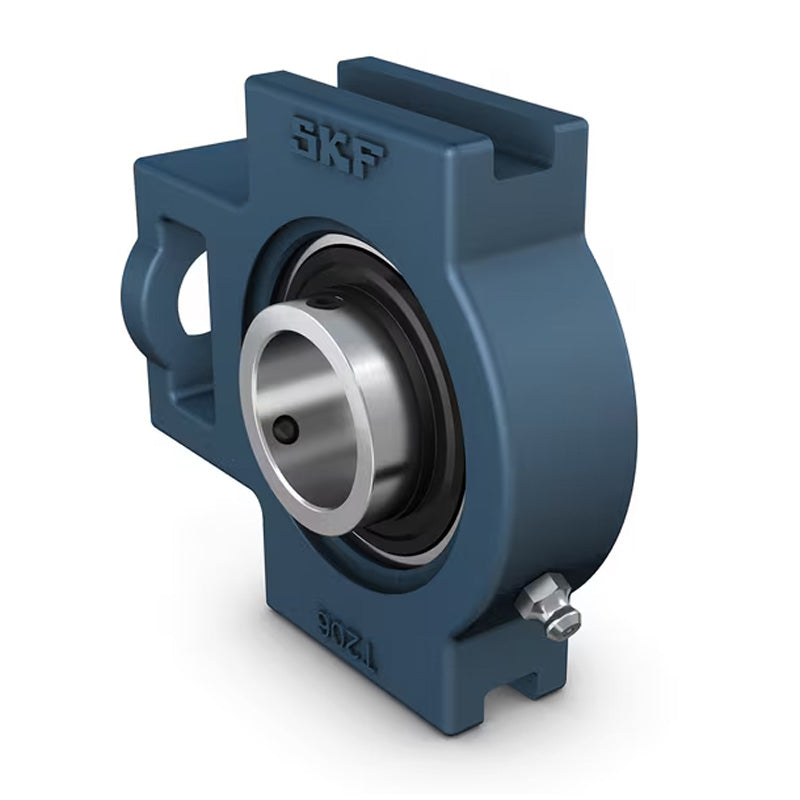

SKF TU45FM Eccentric Locking Collar Take Up Unit 45mm Bore
SKF TU45FM Eccentric Locking Collar Take Up Unit 45mm Bore
Regular price
£119.27
ex VAT£143.12inc. VAT
Regular price
Sale price
£119.27
ex VAT£143.12
inc. VAT
In stock
Price Break
10+
£106.15
20+
£100.19
30+
£99.00
40+
£97.80
50+
£96.61
75+
£95.42
100+
£89.46
200+
£88.26
250+
£87.07
500+
£85.88
1000+
£83.49
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and an Eccentric Locking Collar: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Style:
- TU

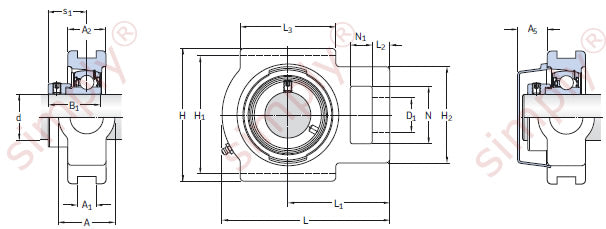

Technical
Technical
| d | 45mm |
|---|---|
| A | 49mm |
| A1 | 17.5mm |
| A2 | 35mm |
| B1 | 43.7mm |
| D1 | 29mm |
| H | 117mm |
| H1 | 101mm |
| H2 | 83mm |
| L | 144mm |
| L1 | 87mm |
| L2 | 15mm |
| L3 | 83mm |
| N | 49mm |
| N1 | 19mm |
| s1 | 32.7mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit Pu | 0.915 kN |
| Limiting speed | 4300 rpm |
| A5 | 23mm |
| Weight | 2.3 kg |
| Compatible end cover | ECY209 |
