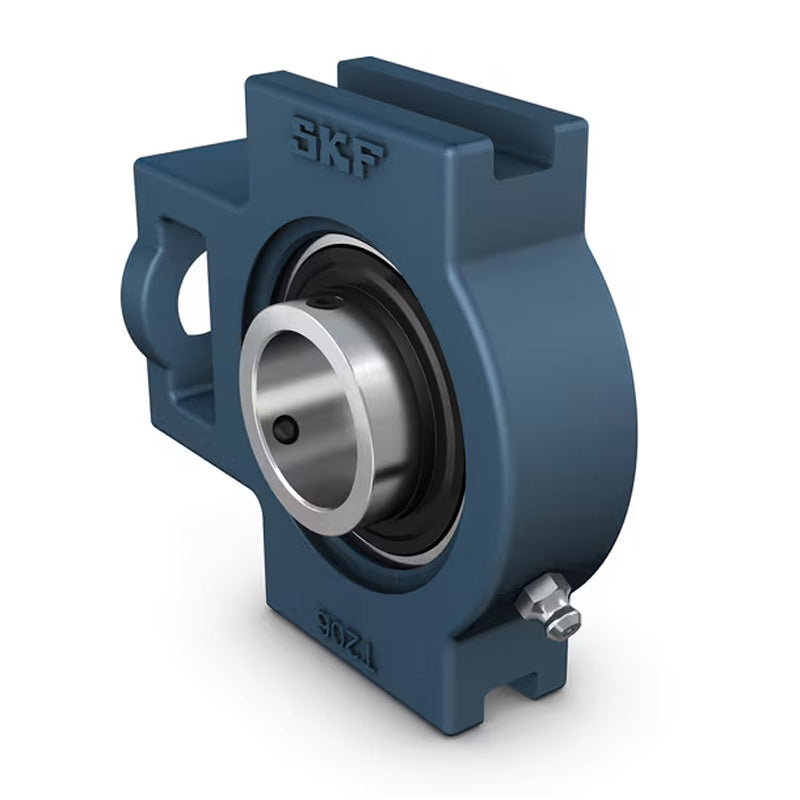

SKF TU30FM Eccentric Locking Collar Take Up Unit 30mm Bore
SKF TU30FM Eccentric Locking Collar Take Up Unit 30mm Bore
Regular price
£71.88
ex VAT£86.26inc. VAT
Regular price
Sale price
£71.88
ex VAT£86.26
inc. VAT
In stock
Price Break
10+
£63.97
19+
£60.38
29+
£59.66
39+
£58.94
49+
£58.22
74+
£57.50
99+
£53.91
199+
£53.19
249+
£52.47
499+
£51.75
999+
£50.32
Couldn't load pickup availability
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and an Eccentric Locking Collar: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 30mm
- Style:
- TU
Technical
Technical
| d | 30mm |
|---|---|
| A | 37mm |
| A1 | 13.5mm |
| A2 | 28mm |
| B1 | 35.7mm |
| D1 | 22mm |
| H | 104mm |
| H1 | 89mm |
| H2 | 56mm |
| L | 114mm |
| L1 | 70mm |
| L2 | 10mm |
| L3 | 57mm |
| N | 37mm |
| N1 | 16mm |
| s1 | 26.7mm |
| Static load Cr | 11.2 kN |
| Dynamic load Cor | 19.5 kN |
| Fatigue load limit Pu | 0.475 kN |
| Limiting speed | 6300 rpm |
| A5 | 20mm |
| Weight | 1.25 kg |
| Compatible end cover | ECY206 |
