SKU: TU25TF-SKF

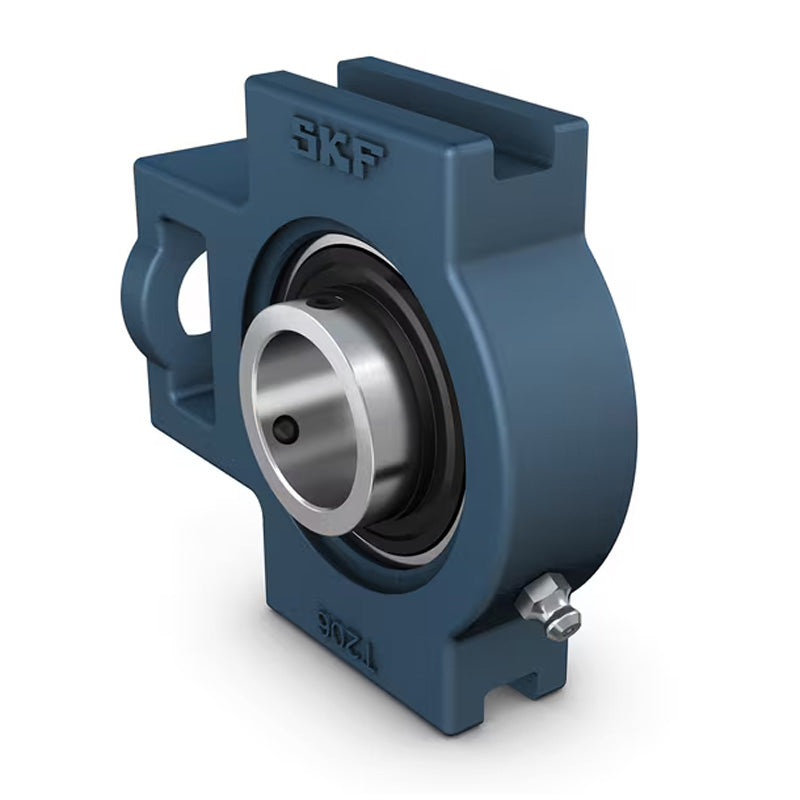

SKF TU25TF Grub Screw Type Take Up Unit 25mm Bore
SKF TU25TF Grub Screw Type Take Up Unit 25mm Bore
Regular price
£49.30
ex VAT£59.16inc. VAT
Regular price
Sale price
£49.30
ex VAT£59.16
inc. VAT
In stock
Price Break
10+
£43.88
20+
£41.41
30+
£40.92
40+
£40.43
50+
£39.94
75+
£39.44
100+
£36.98
200+
£36.48
250+
£35.99
500+
£35.50
1000+
£34.51
Description
Description
|
SKF Y-bearing Take-Up Units with Cast Housing and Grub Screws: This unit consists of a cast housing and an insert bearing. They are typically mounted in take-up frames and connected by an adjustment screw. A grease fitting is provided in the housing for re-lubrication. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 25mm
- Style:
- TU
Technical
Technical
| d | 25mm |
|---|---|
| A | 34mm |
| A1 | 13.5mm |
| A2 | 25mm |
| B | 34.1mm |
| D1 | 19mm |
| H | 91mm |
| H1 | 76mm |
| H2 | 53mm |
| L | 100mm |
| L1 | 64mm |
| L2 | 10mm |
| L3 | 52mm |
| N | 33mm |
| N1 | 16mm |
| s1 | 19.8mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit Pu | 0.335 kN |
| Limiting speed | 7000 rpm |
| A5 | 18mm |
| Weight | 0.77 kg |
| Compatible end cover | ECY205 |
