SKU: TPR.EXT.16X85MM

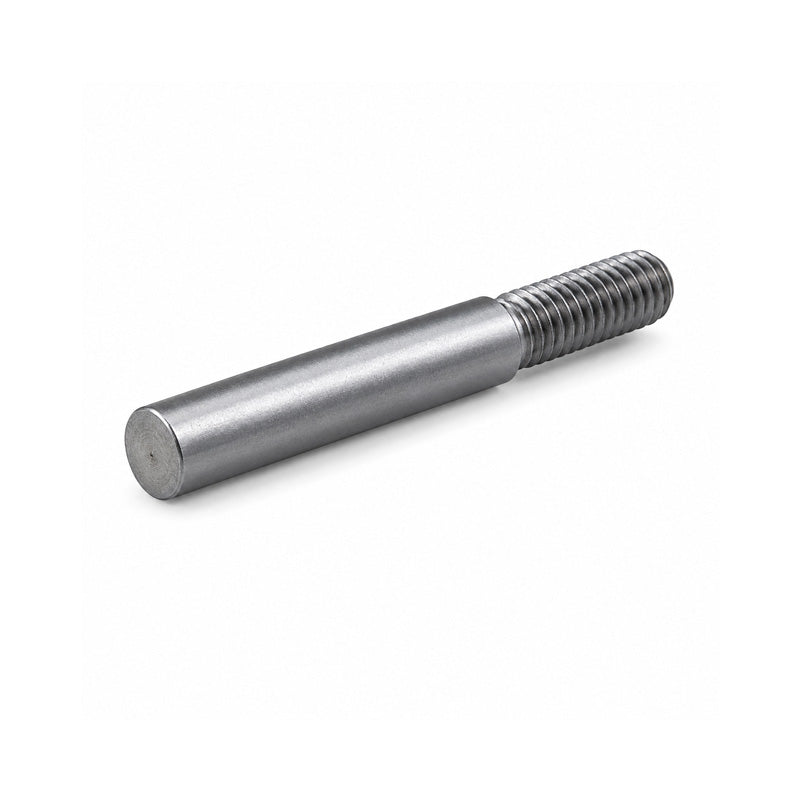

Metric Mild Steel Externally Threaded Taper Pin 16x85mm
Metric Mild Steel Externally Threaded Taper Pin 16x85mm
Regular price
£5.52
ex VAT£6.62inc. VAT
Regular price
Sale price
£5.52
ex VAT£6.62
inc. VAT
In stock
Price Break
5+
£5.46
10+
£5.24
20+
£5.13
50+
£4.97
100+
£4.86
500+
£4.58
1000+
£3.86
Couldn't load pickup availability
Description
Description
Externally Threaded Mild Steel Taper Pins: These taper pins are externally extractable which means that they are externally threaded for easier removal. The pin is simply inserted into an application and then hammered until tightly installed. To remove a pin from an application, a hex nut can be tightened onto the external thread and used to unseat the pin.
Benefits: Quick removal and re-useable
- Brand / Quality:
- Simply Taper Pins - High Quality
- Inside Diameter:
- 16mm
- Length:
- 85mm
- Material:
- Mild Steel
Technical
Technical
| d | 16mm |
|---|---|
| L | 85mm |
| d Tolerance | +0.00 -0.070mm |
| d2 | M16 |
| a | 6mm |
| b min | 35mm |
| b max | 39mm |
| Material | Mild Steel |
| DIN | DIN7977 |
| Type | Externally Threaded |
| Weight per pin | 0.1342kg |
