SKU: TMHS75-SKF

SKF TMHS75 Advanced Hydraulic Spindle 229mm / 9.0 in max. Reach

SKF TMHS75 Advanced Hydraulic Spindle 229mm / 9.0 in max. Reach
£443.64 ex VAT£532.37inc. VAT
£443.64 ex VAT£532.37 inc. VAT
Sale Sold out

In stock

Price Break
10+ £394.84
19+ £372.66
29+ £368.23
39+ £363.79
49+ £359.35
74+ £354.92
99+ £332.73
199+ £328.30
249+ £323.86
499+ £319.42
999+ £310.55
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Advanced Hydraulic Spindles TMHS Series: The SKF advanced hydraulic spindles generate a high pulling force with very little effort compared to the standard mechanical spindles. They dramatically reduce the time needed to dismount a bearing or other component. The spindles are equipped with integrated hydraulic pumps for force generation. Maximum pulling forces are limited by special safety valves and the hydraulic oil will remain inside the pump.
Benefits: Hardened and chrome plated piston with spring return function. Spring-loaded centre point in the nosepiece allows easy centring of the puller on the shaft without damaging shaft centre point.
Note: Suitable for use with pullers with a 1 1/4-12 UN thread.
Brand / Quality:
SKF - High Quality
Technical

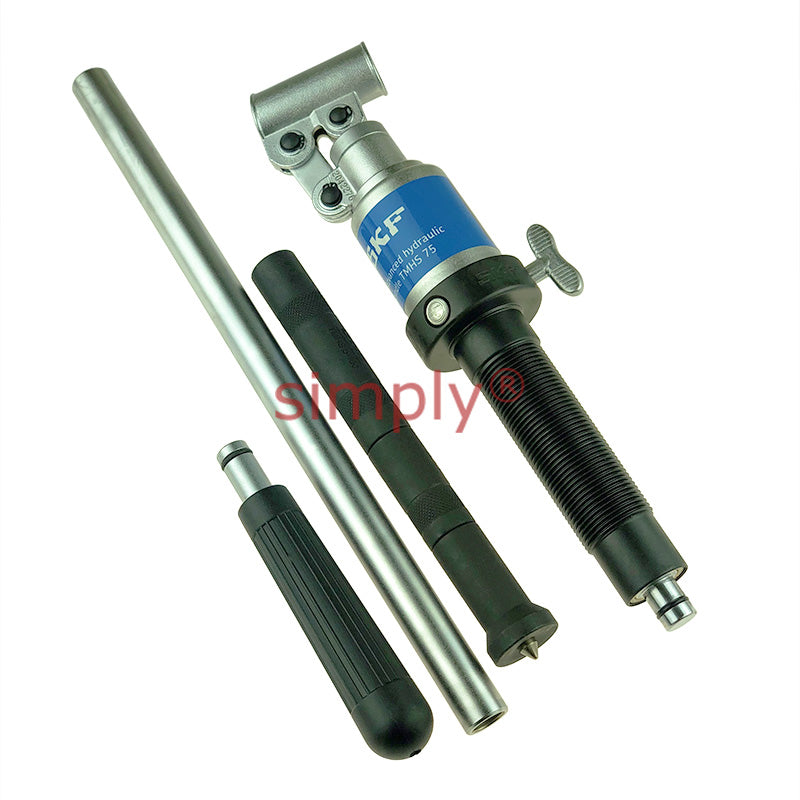

Hydraulic Spindle 1 Piece
Extension Pieces 50 and 100mm 2 Pieces
Nose Piece 1 Piece
Maximum Withdrawal Force 75 kN (8.4 US ton)
Piston Stroke 75mm (3.0 in.)
Body Thread 1 1/4-12 UN
Nose Piece Diameter 35mm (1.4 in.)
Maximum Reach 229mm (9.0 in.)
